Nail Strip
Hidden Fastener Standing Seam Panel
The Nail Strip panel is a hidden fastener standing seam panel system that offers easy installation for roofers. A suitable choice for climates with high wind, high snow accumulation & extreme temperatures.
With long clean lines, this panel system provides recognized standing seam performance, while remaining an affordable product for a wide array of projects. Works well for both roof and siding applications and is available with 2-1/4” minor ribs.
Keep scrolling for panel specs, available trims, installation guide, colours & finishes, and project photos!

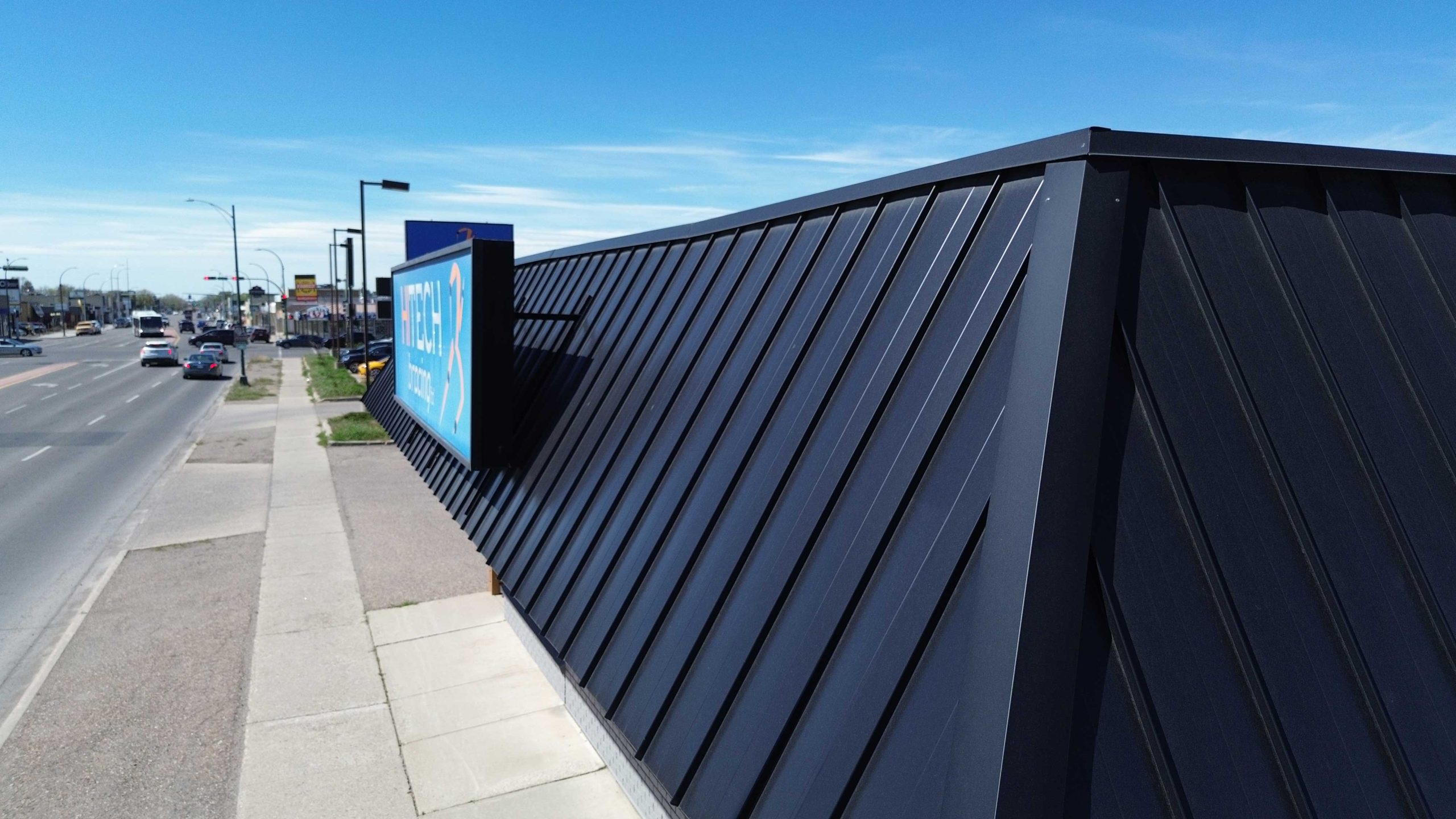

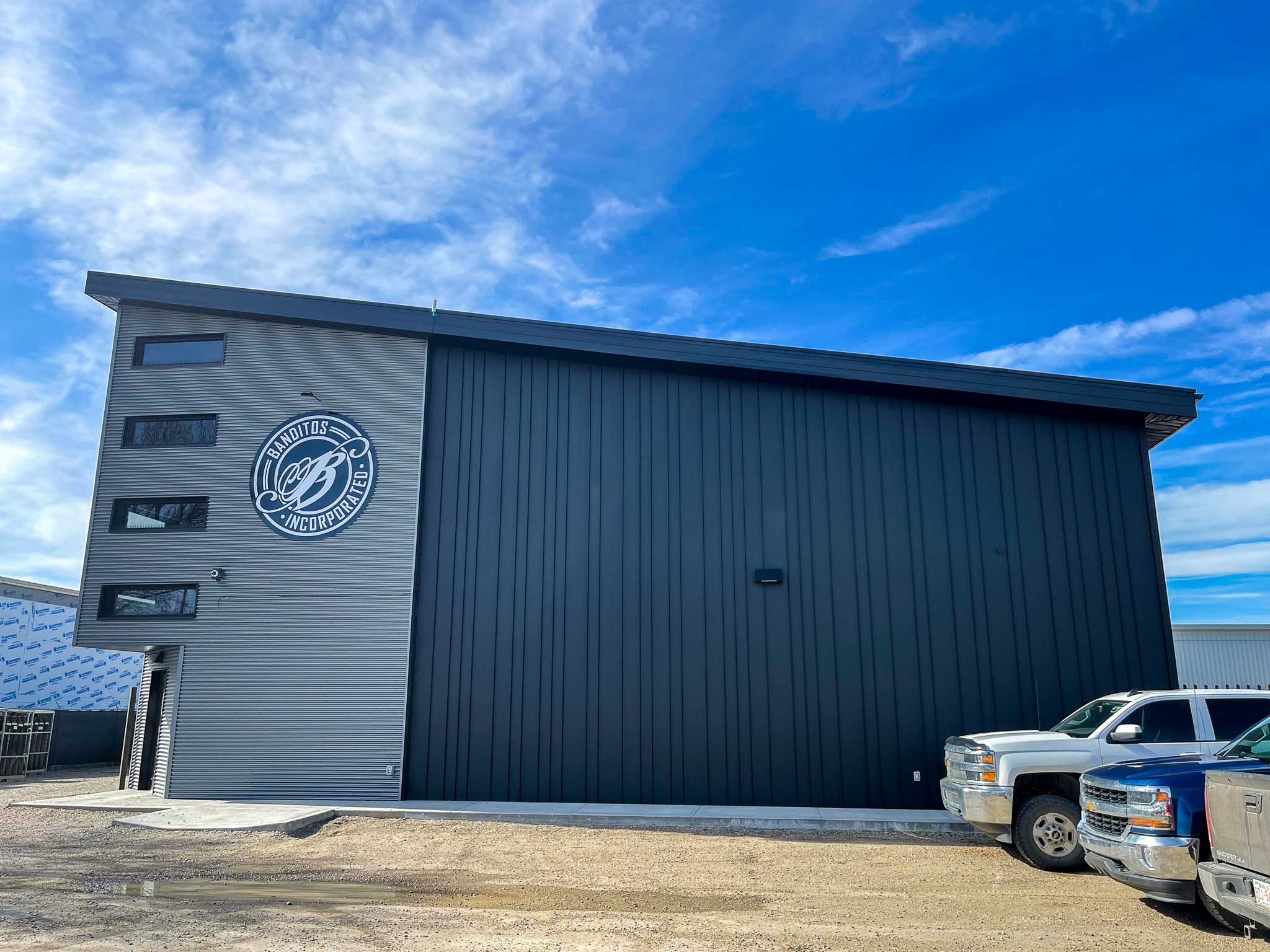

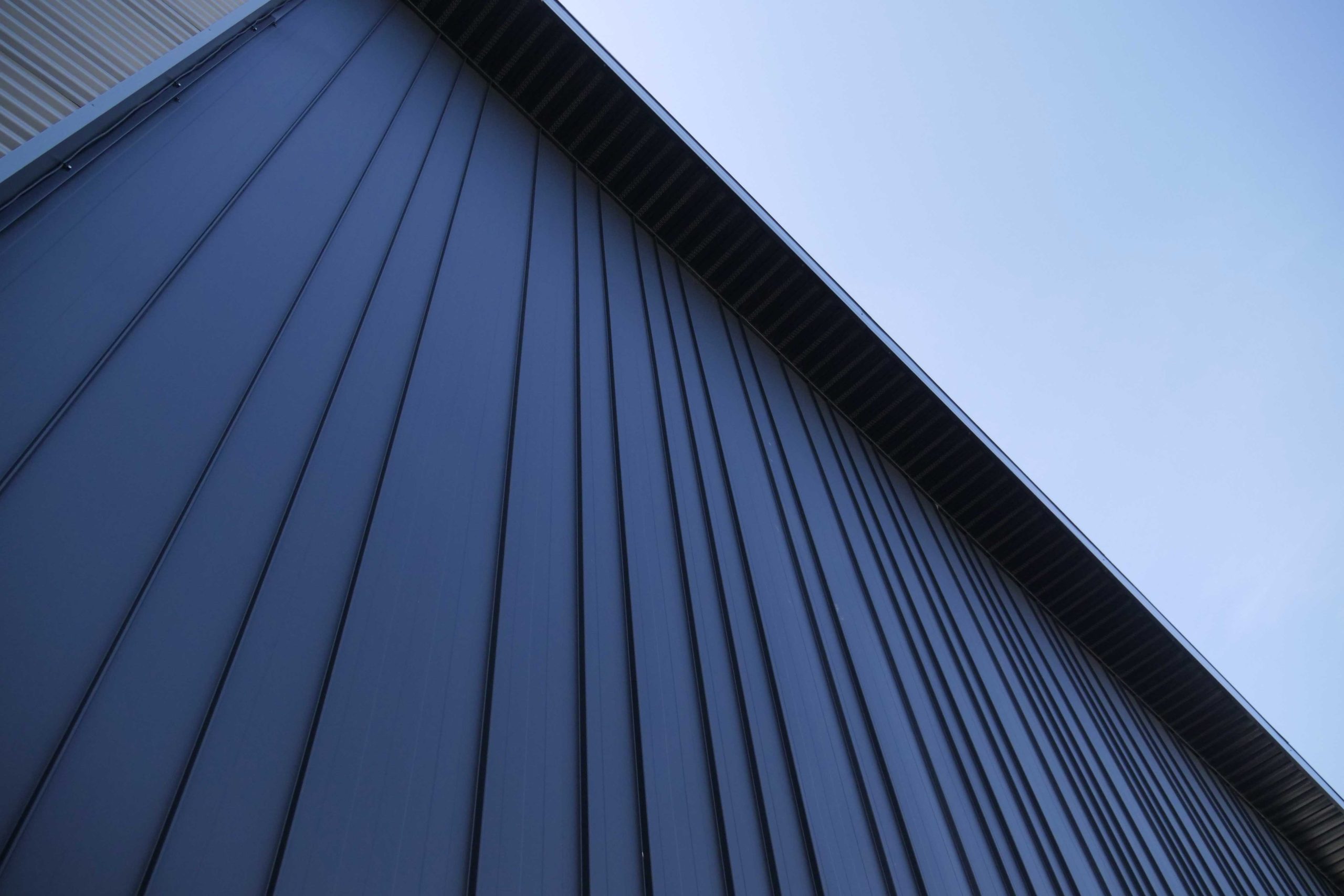

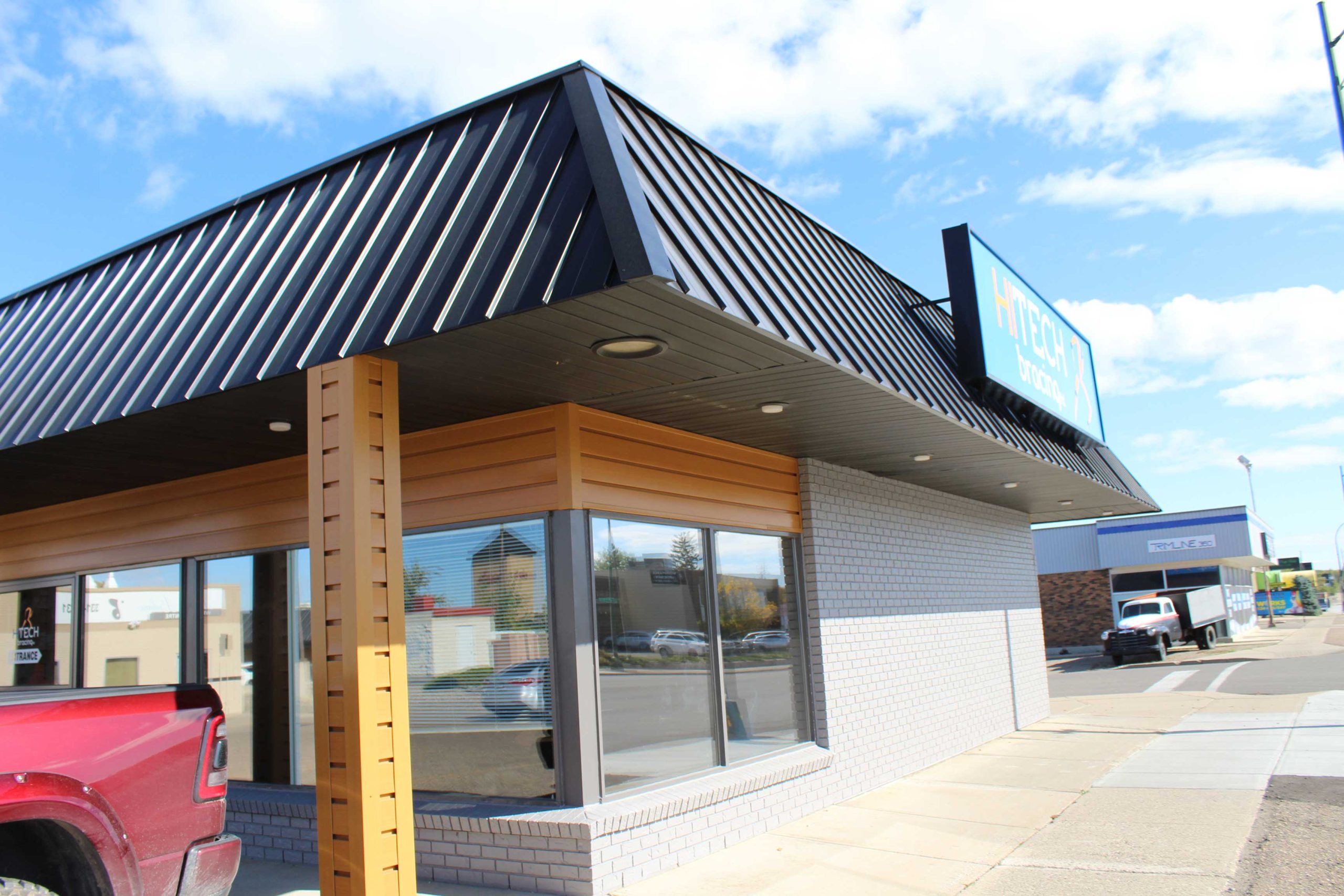

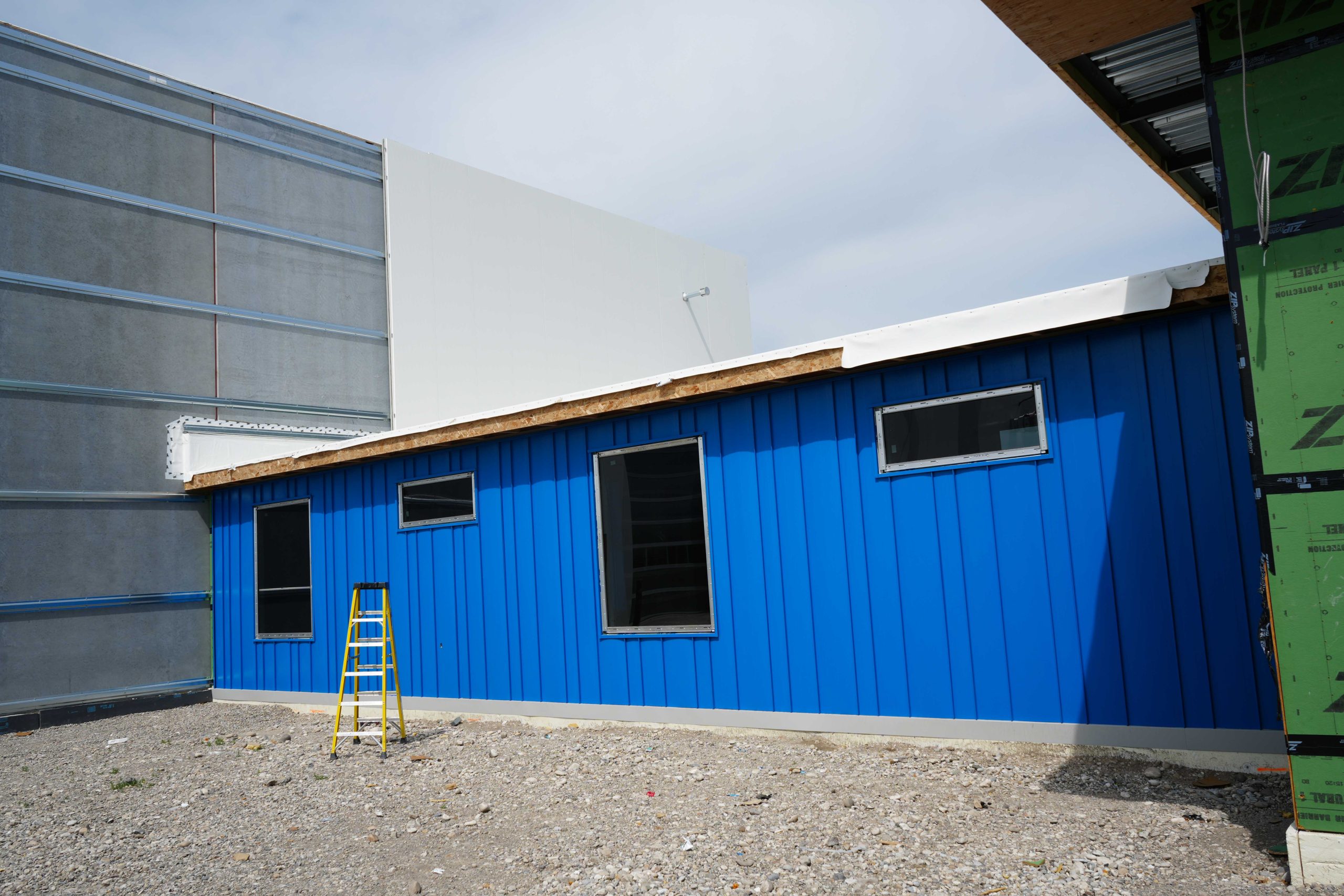

Project Gallery
Click on a photo to view colour & finish details
Panel Specifications
Applications: Roof & Wall
Coverage: 10-3/4″ to 16″
Depths: 1″ or 1-1/2″
Panel Length: Up to 35′ (minimum length: 48″)
Available Gauge: 24
Available in 40+ Standard Colours & Specialty Finishes
Slope: Greater than 3/12 is recommended for roofs
Note: Confirm with construction standards and underlayment manufacturing
Substrate: 5/8″ Standard plywood minimum (1/2″ for walls)
Notching is available upon request
Note: Should always be applied on solid substrate

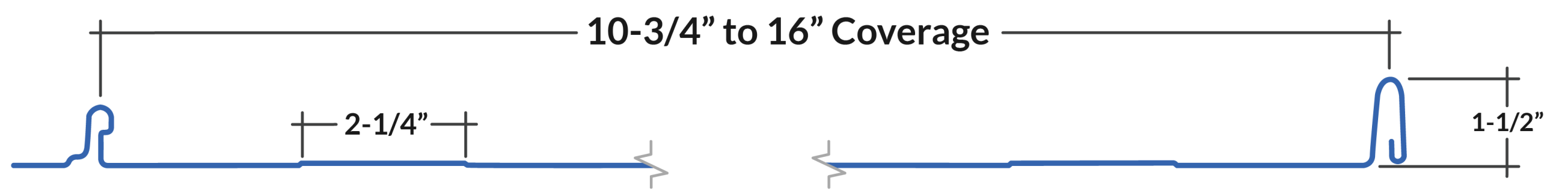

Line Drawing
Available Resources
Click on one of the tabs to get started
Nail Strip Brochure
Get everything you need to know all in one page, including available trims & trim codes.
Notching
Field notching for contractors can be a time-consuming task, but the best installers know that notching panels for attachment at the ridge or eave provide the best results and a clean professionally finished hem every time. Pre-notched panels save time and money on every job. Providing a consistently clean installation for your clients just got a lot easier.
Custom Trim
Our Nail Strip panel come in our standard 1″ and 1.5″ trim collections.
For a detailed view with trim codes, download the full trim list below.
Don’t Forget the Accessories
We have everything you need to complete your installation.
Check out these quick links below:
Available Colours & Finishes
Steel Samples Available
We offer a variety of steel samples to our customers including steel panels, steel colour pieces, and samples rings of our Standard Colours & Specialty Finishes. For an exact representation of colour, we always recommend viewing steel colours in person prior to ordering.
To get samples, find a Forma Steel dealer near you by clicking the button below.
Looking For More?
View our wide range of Rollformed Panels great for various applications with multiple gauge options. Or check out our Inspiration Gallery to view more project photography with even more Colours & Specialty Finishes!
Check Out FormaLoc
If you like Nail Strip, consider checking out our FormaLoc panel that offers easy installation for roofers & homeowners alike. Available in 26 & 29 gauge steel.
