Mechanical Loc
Commercial Grade Standing Seam Panel
The Mechanical Loc panel is a commercial grade panel that is mechanically seamed and installed with a concealed clip system. This panel offers long clean lines and wide variable widths. A suitable choice for climates with high wind, high snow accumulation, and extreme temperatures. Ideal for shallow sloped roofs and is available in 1”, 1.5” and 2” seam heights. Available with either minor ribs or striations. Striations are recommended on panels to minimize the appearance of oil-canning.
The use of proper underlayment is vital to the performance of any roofing system, we recommend the use of a peel and stick membrane for any slopes lower than 3:12.
Keep scrolling for panel specs, available trims, installation guide, colours & finishes, and project photos!

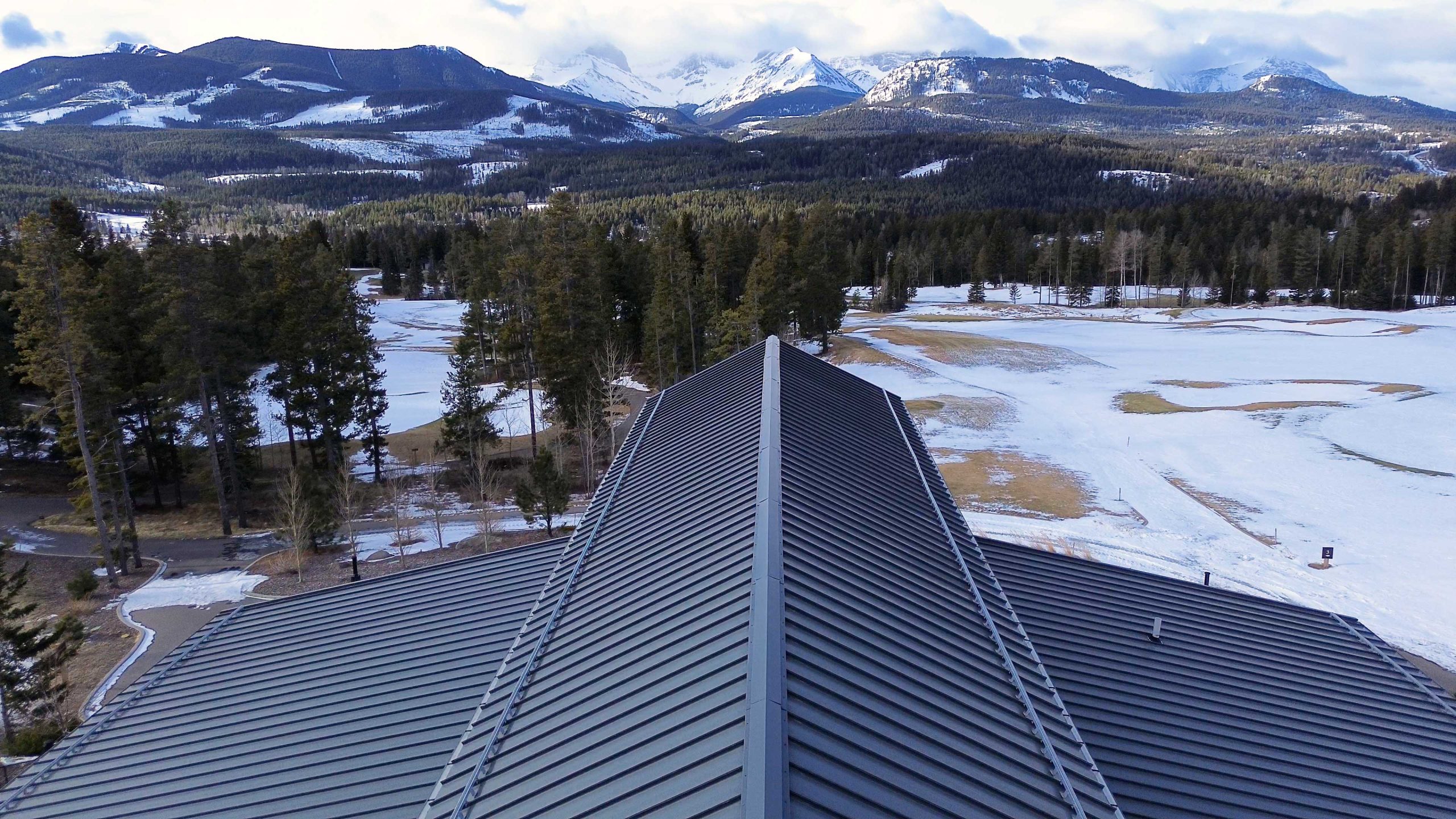

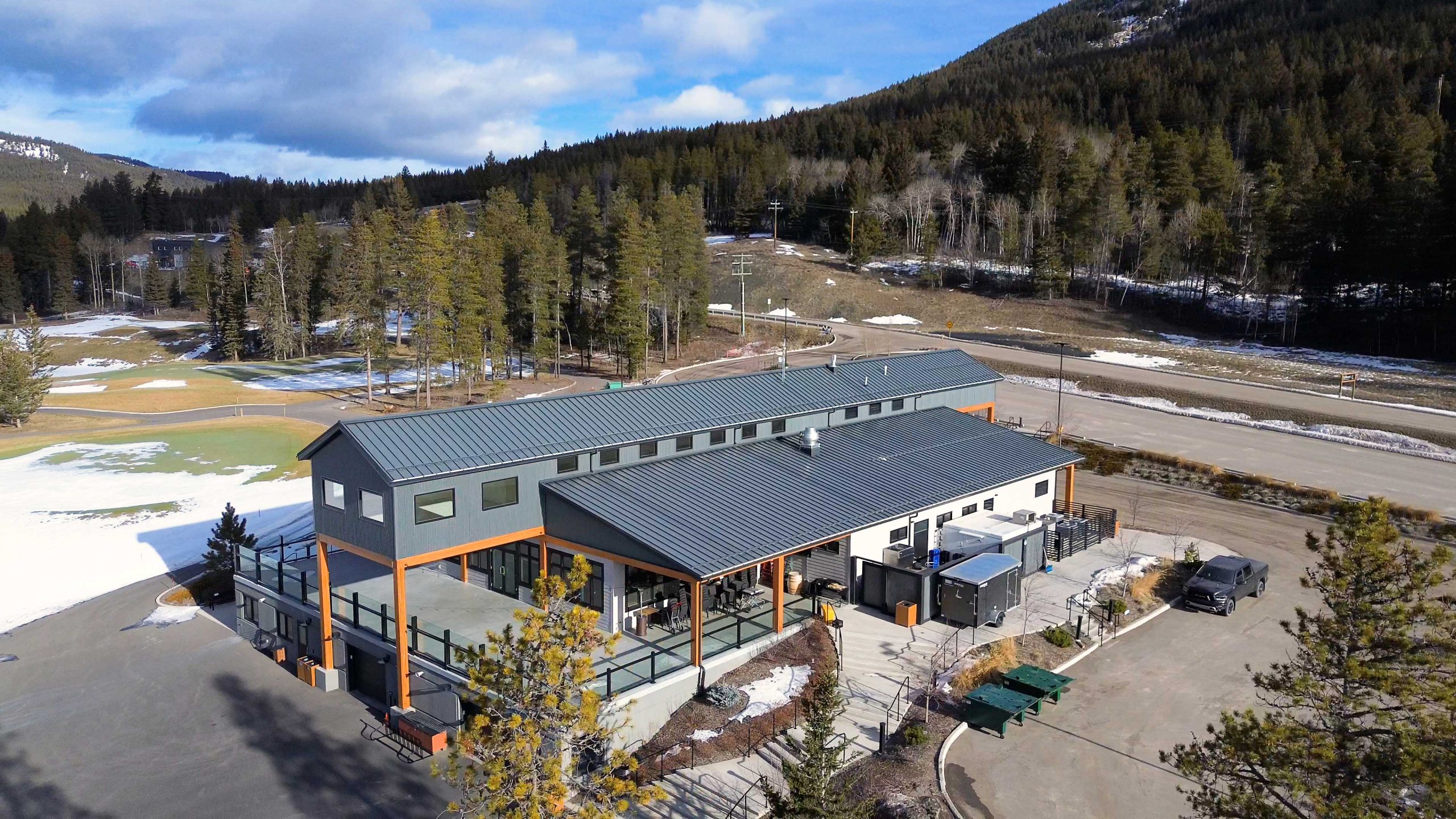

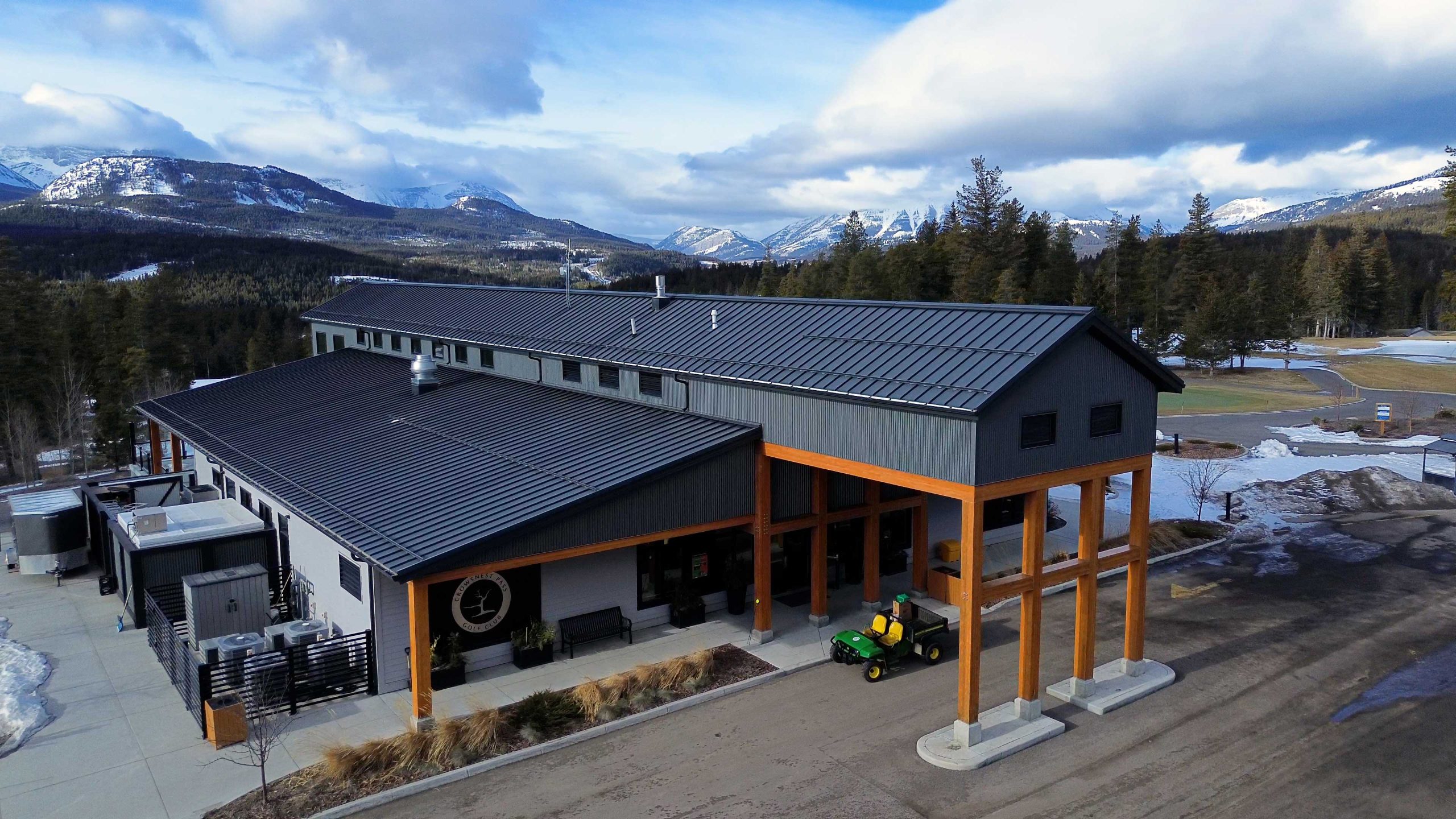

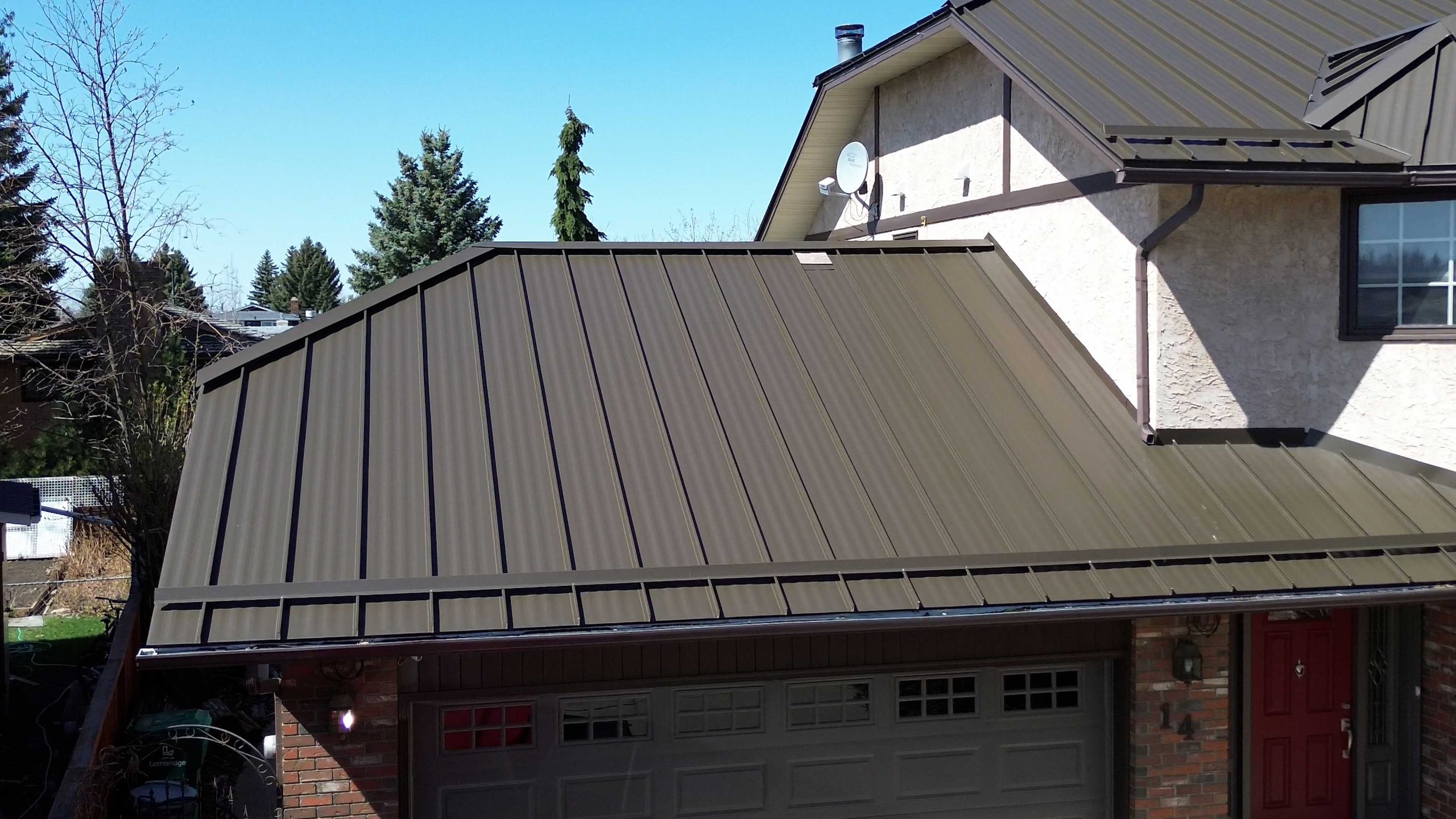

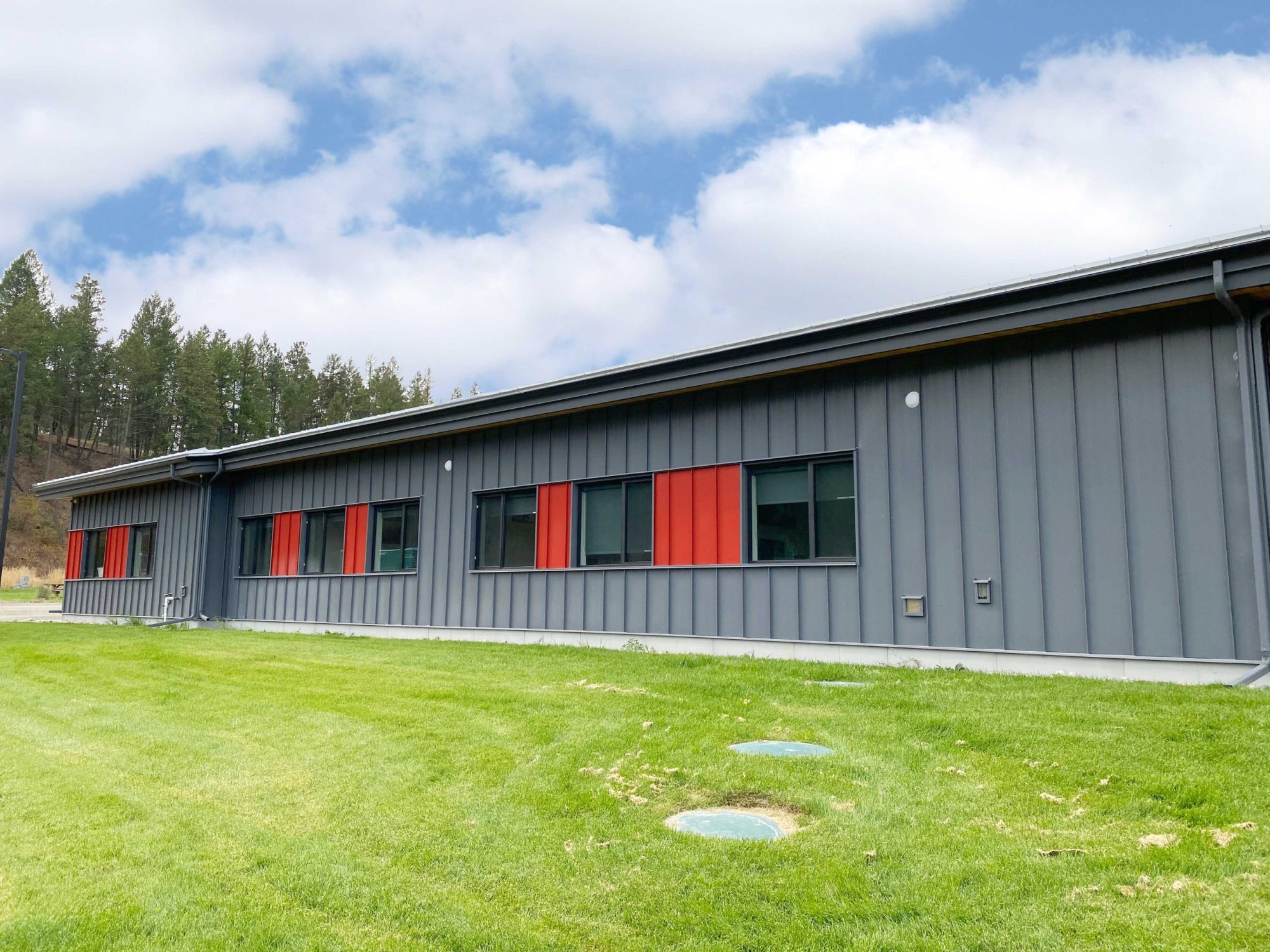

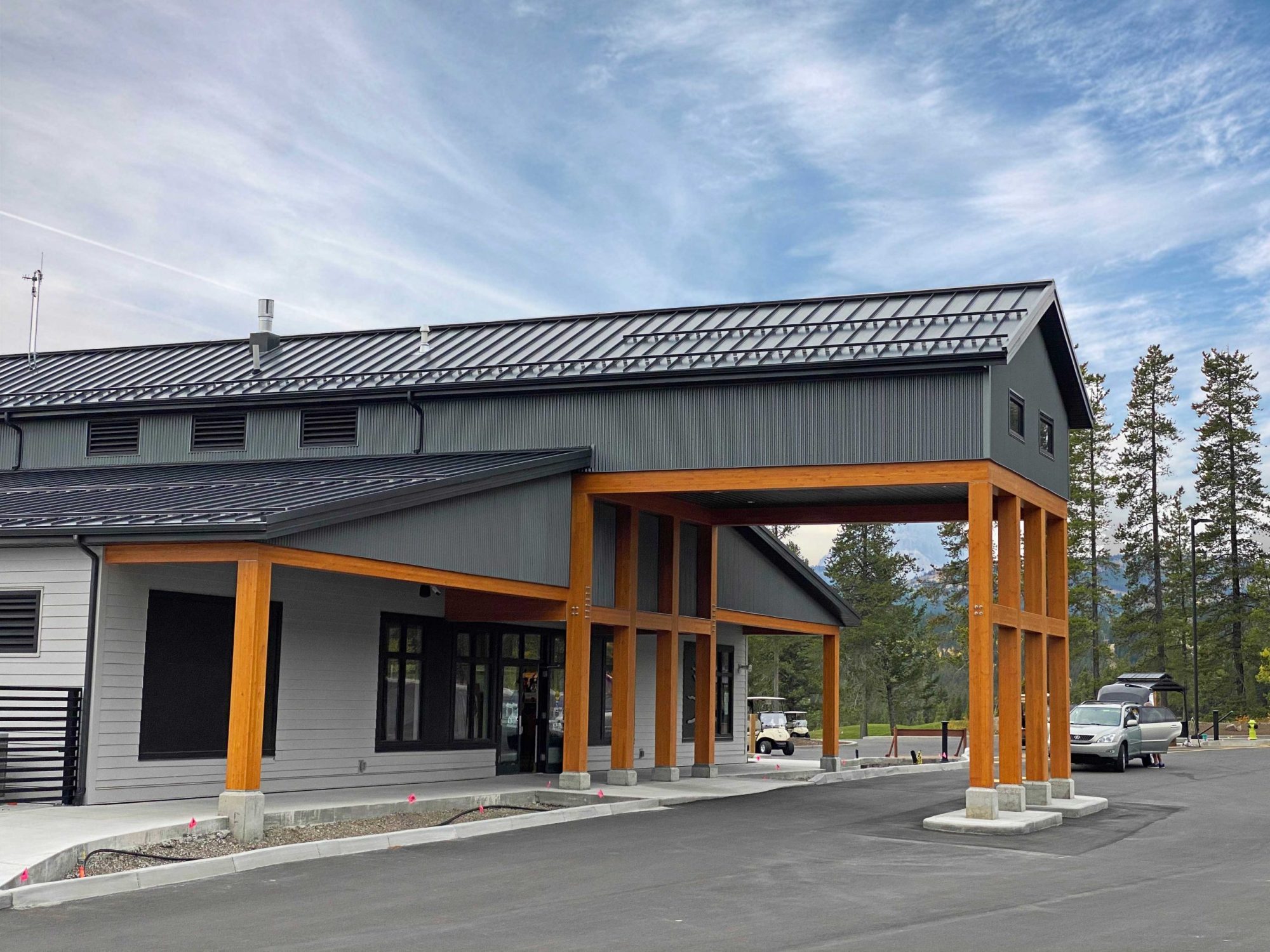

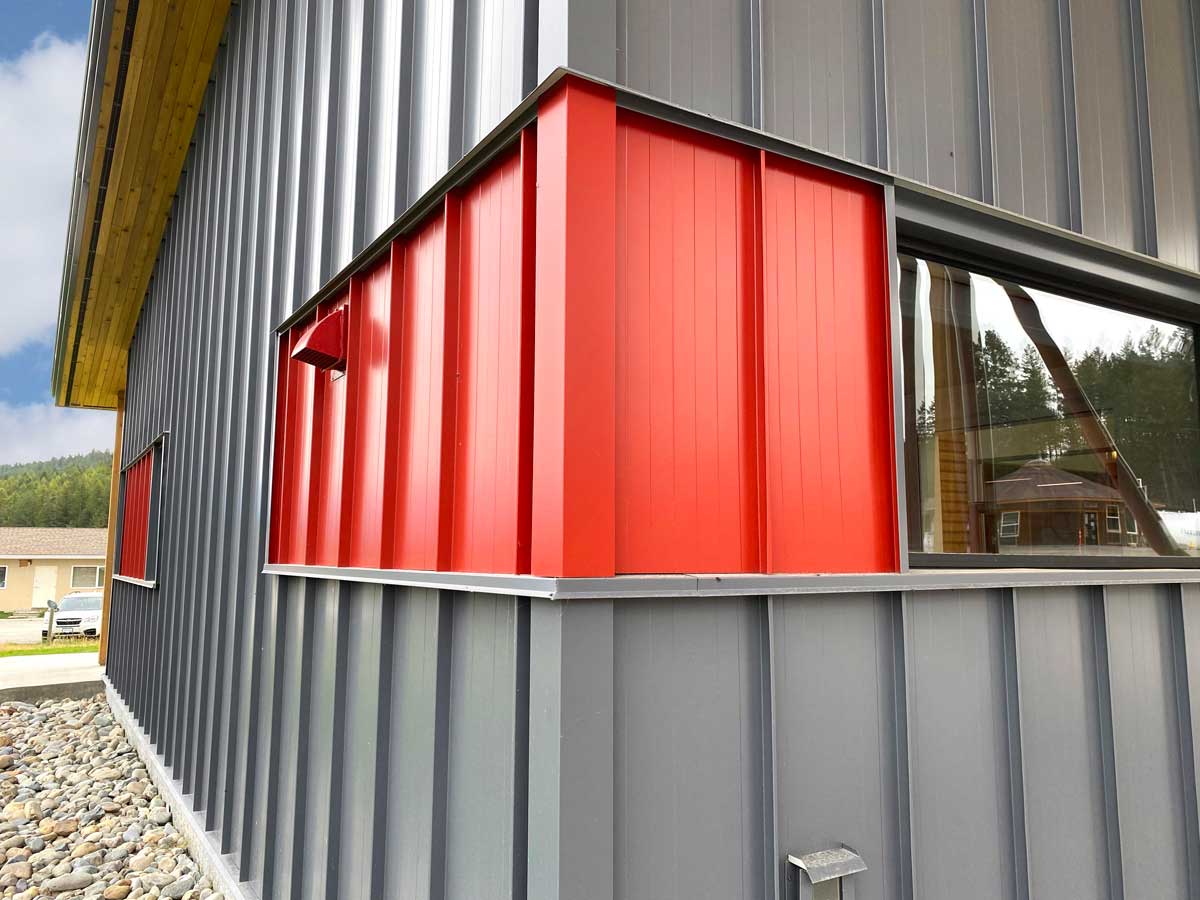

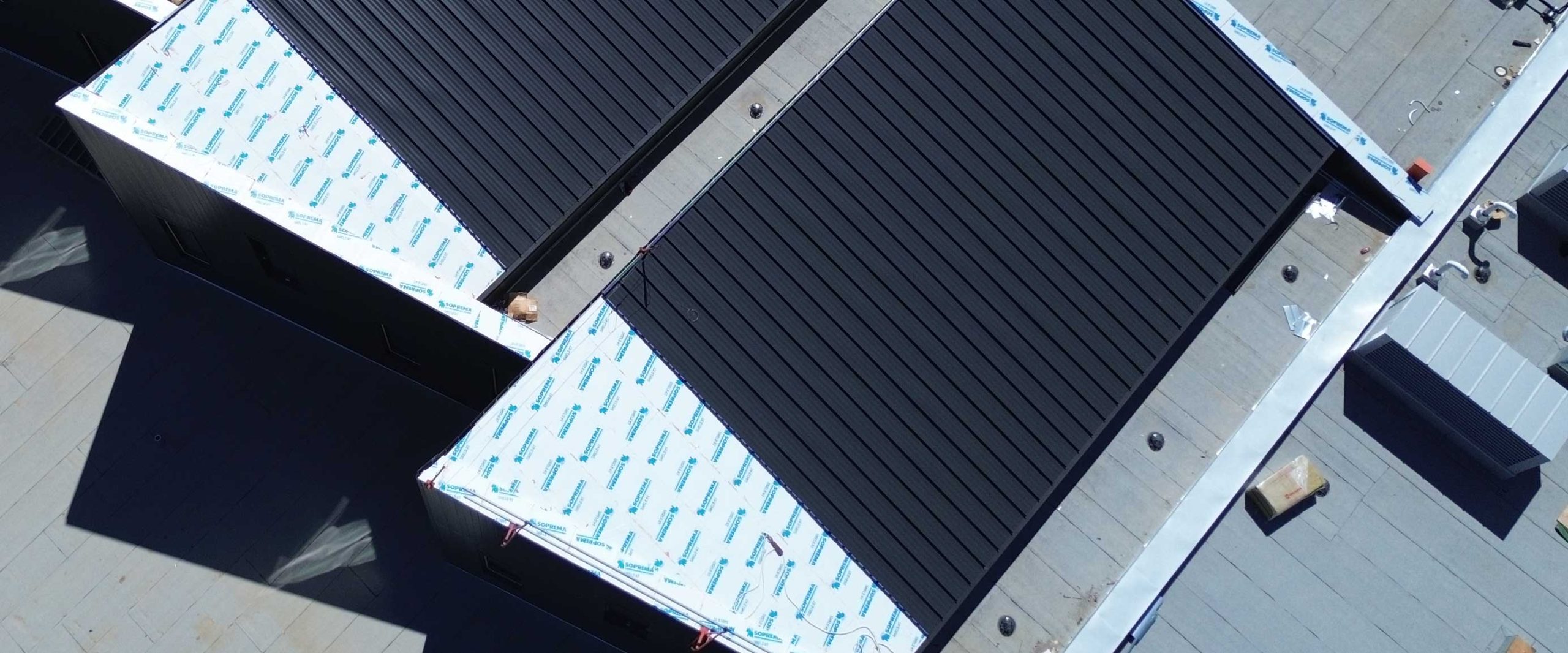

Project Gallery
Click on a photo to view colour & finish details
Panel Specifications
Application: Roof
Coverage: 12-1/4″ to 16″
Seam Heights: 1″ or 1-1/2″ or 2″
Panel Length: Up to 50′ (minimum length: 36″)
Available Gauge: 24
Available in 40+ Standard Colours & Specialty Finishes
Substrate: 5/8″ standard plywood minimum (1/2″ for walls)
Minimum Slopes: 1″ = 3:12 | 1-1/2″ = 1.5/12 | 2″ = 3/4:12
Note: Confirm with construction standards and underlayment manufacturing
Requires seamer tool (inquire about our rental options)

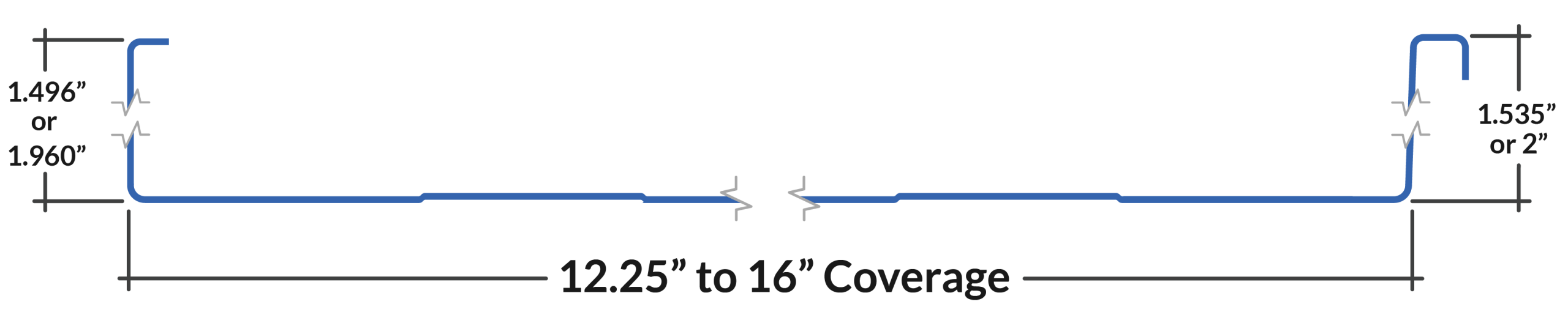

Line Drawing
Available Resources
Click on one of the tabs to get started
Mechanical Loc Brochure
Get everything you need to know all in one page, including available trims & trim codes.
Installation Guide
The use of a proper underlayment is vital to the performance of any roofing system. Forma Steel strongly recommends the use of a peel and stick membrane for any slopes lower than 3/12. Since every project is different, care and attention should be paid to the product that is being specified so that the building performs as designed.
Venting, breathability and water resistance are all components of a building envelope and should be confirmed with building designers for optimal performance.
Custom Trim
Our Mechanical Loc panel come in our standard 1″, 1-1/2″ and 2″ trim collections.
For a detailed view with trim codes, download the full trim list below.
Don’t Forget the Accessories
We have everything you need to complete your installation.
Check out these quick links below:
Available Colours & Finishes
Steel Samples Available
We offer a variety of steel samples to our customers including steel panels, steel colour pieces, and samples rings of our Standard Colours & Specialty Finishes. For an exact representation of colour, we always recommend viewing steel colours in person prior to ordering.
To get samples, find a Forma Steel dealer near you by clicking the button below.
Looking For More?
View our wide range of Rollformed Panels great for various applications with multiple gauge options. Or check out our Inspiration Gallery to view more project photography with even more Colours & Specialty Finishes!
Looking For Installation Tools?
Forma Steel offers multiple tools to make installation of our product as simple as possible. Save time, effort, money and materials by using the right tool for the job. Browse through our available tools for rent or for purchase.
Where to Buy Forma Steel
We distribute through a network of Forma Steel dealers throughout Western Canada and beyond. We can work with you to acquire the right materials and designs for any creative vision from conception to final physical form.
Ask for Forma Steel at your local building supply store or lumber yard. Or check out our Where to Buy map below!
