FR Panel
Commercial Profile With the Largest Spans
The FR panel features our largest span at 12” making this profile a go-to choice for many commercial applications. The panel also features our highest rib height at 1-1/4”, which performs extremely well on low-sloped roofs and the farthest spans.
The FR Reverse panel takes our wide span FR panel and flips it over to create an entirely new cladding option. A versatile profile for commercial buildings, residential accents, and architectural applications.
Keep scrolling for panel specs, available trims, installation guide, colours & finishes, and project photos!

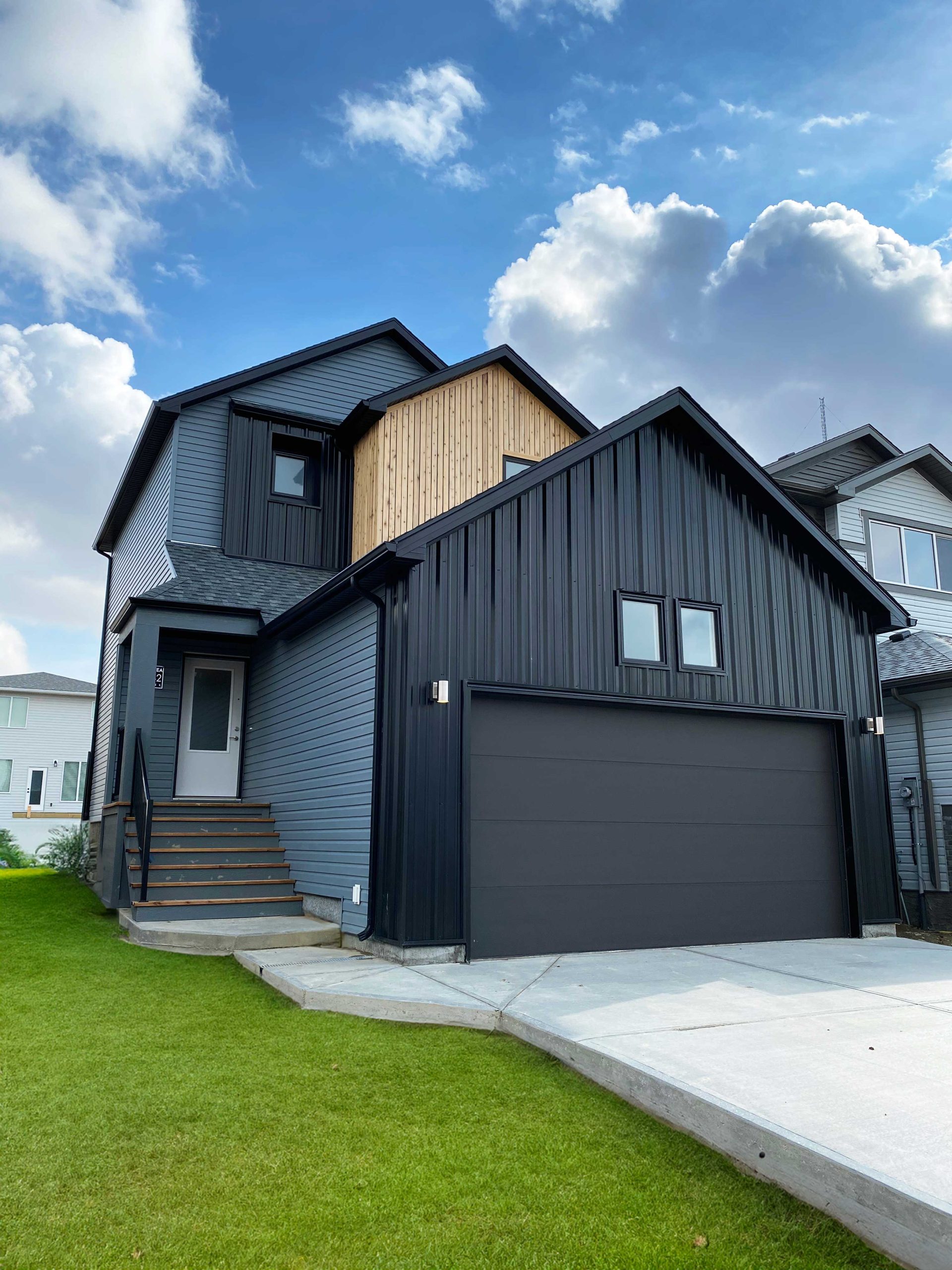

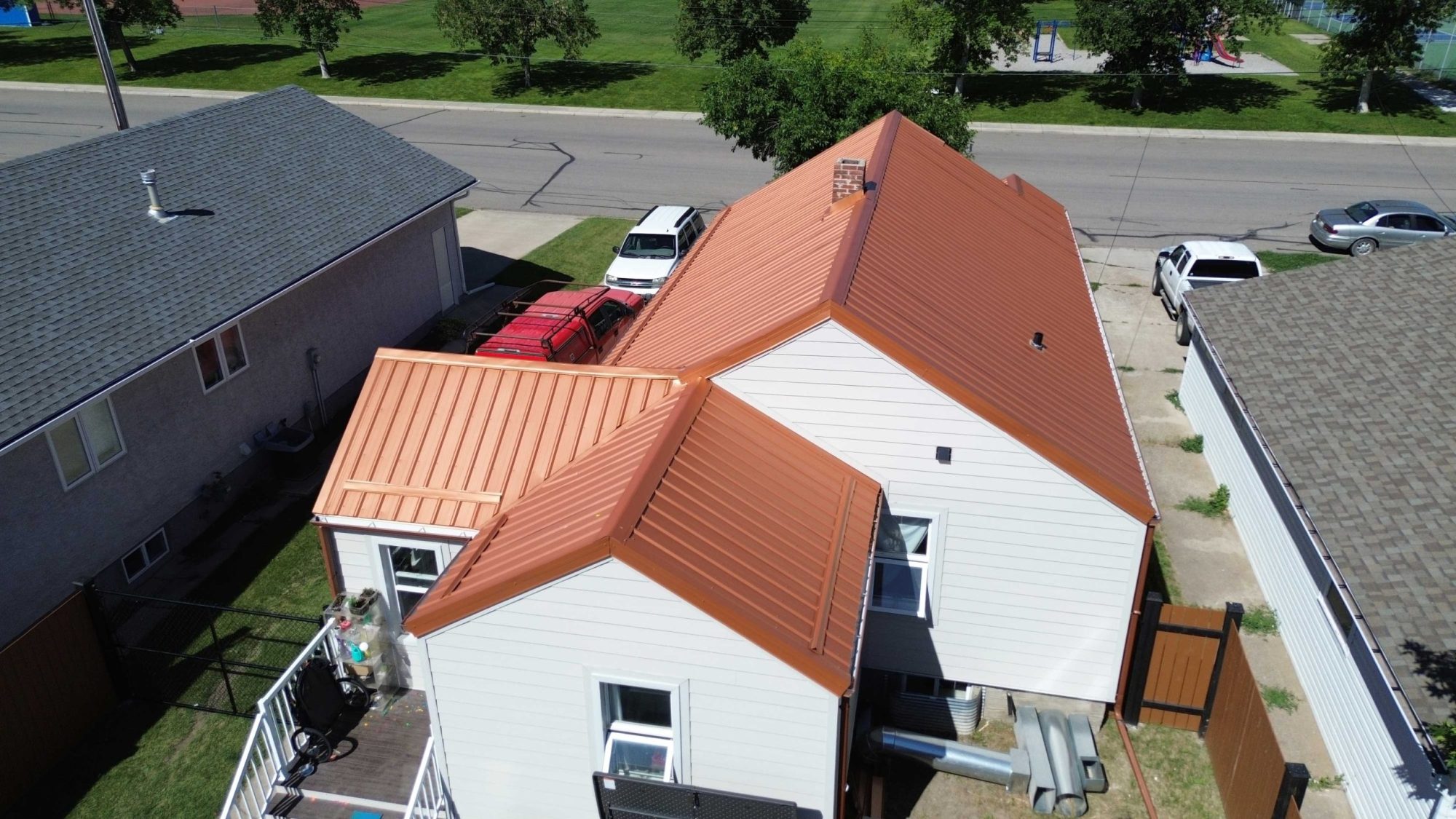

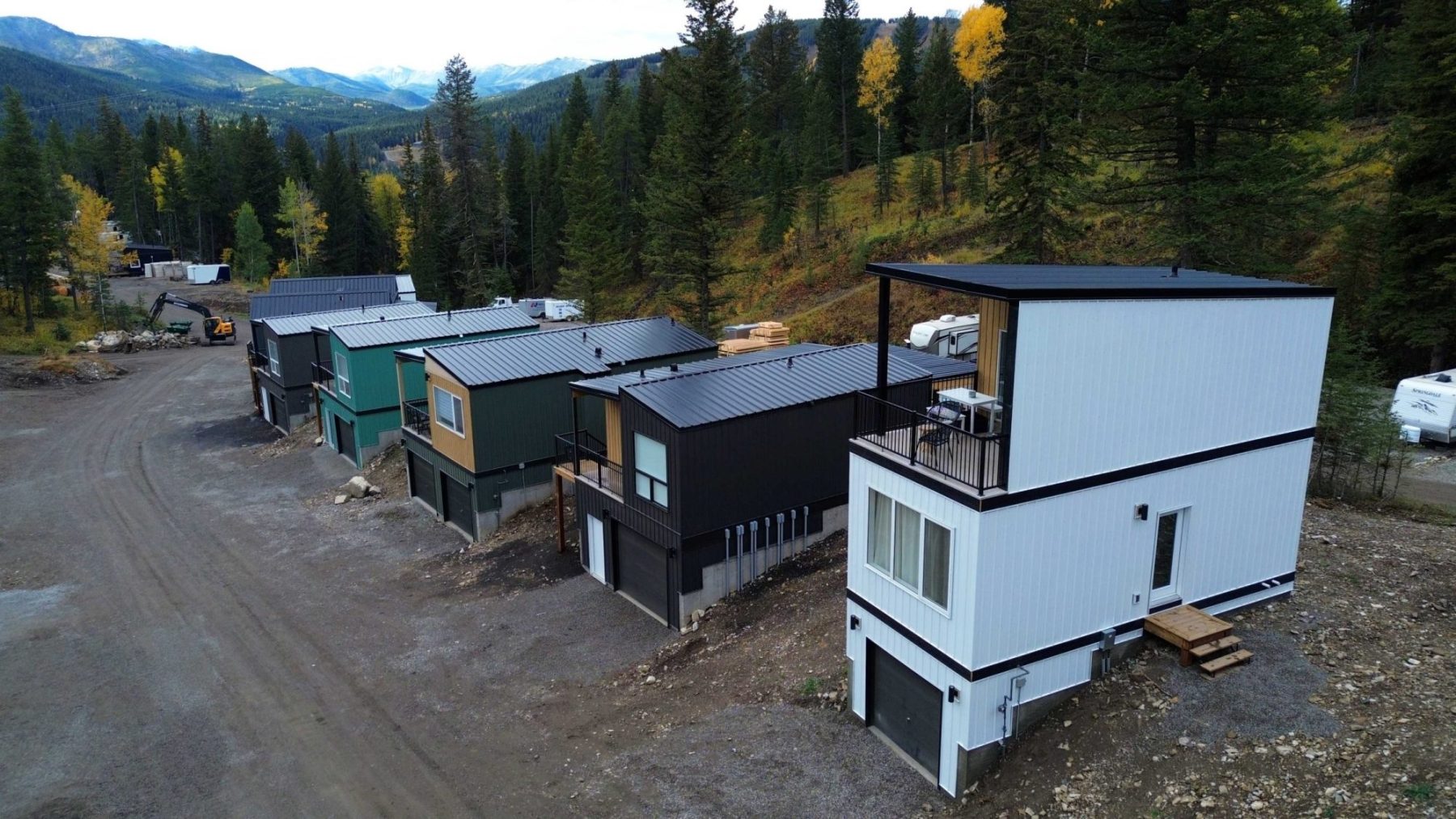

Project Gallery
Click on a photo to view colour & finish details
FR Panel
FR PANEL
Ideal for Low-Sloped Roofs
Panel Specifications
Applications: Roof & Wall
Coverage: 36″
Depth: 1-1/4″
Available Gauges: 24 & 26
Available in 40+ Standard Colours & Specialty Finishes
Recommended Slope: 1/12 with overlap (or 2/12 without)
Note: Confirm with construction standards and underlayment manufacturing
Cutting charge applies below 48″
More colours & gauges are available by special order
Line Drawing

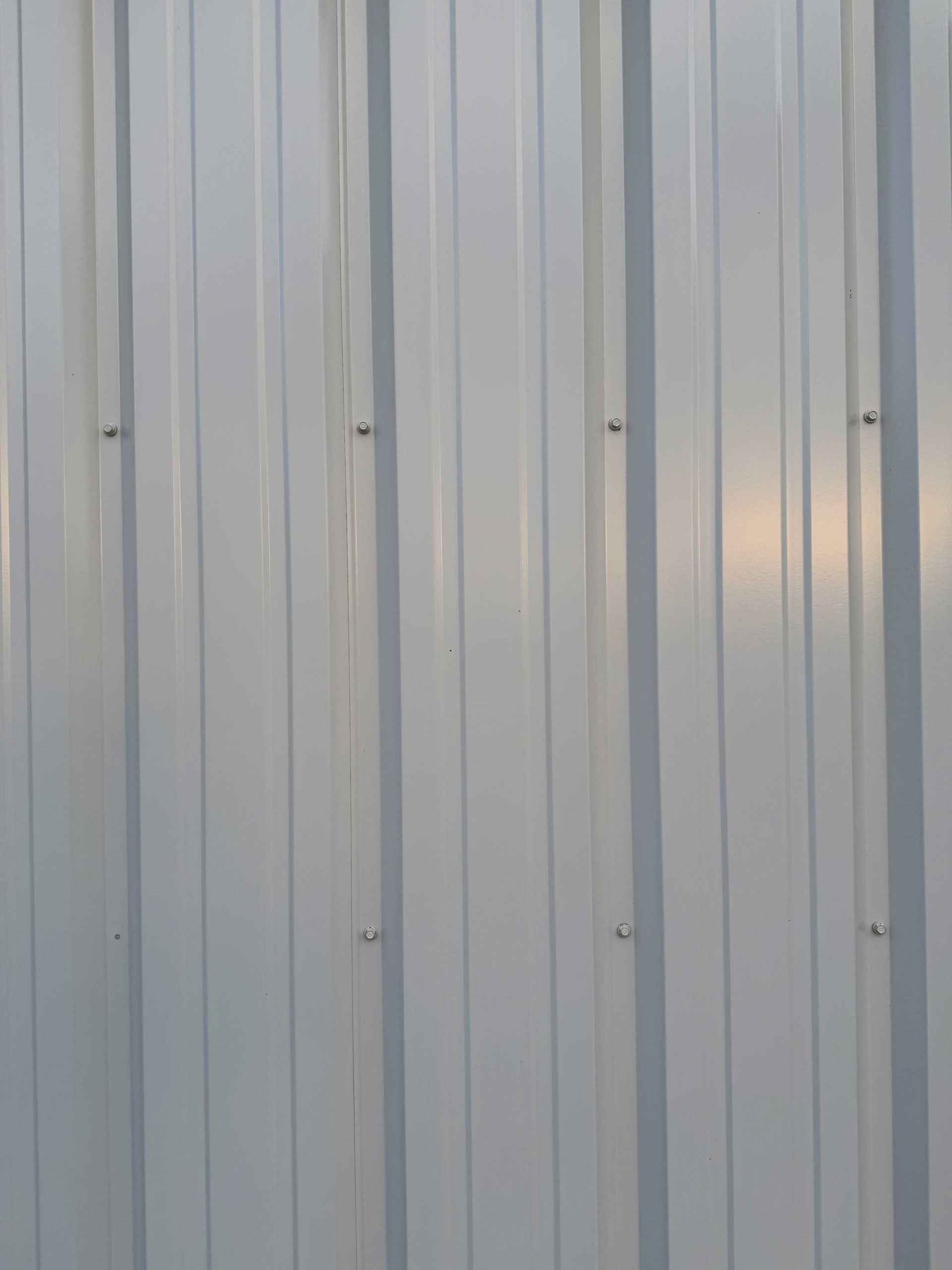

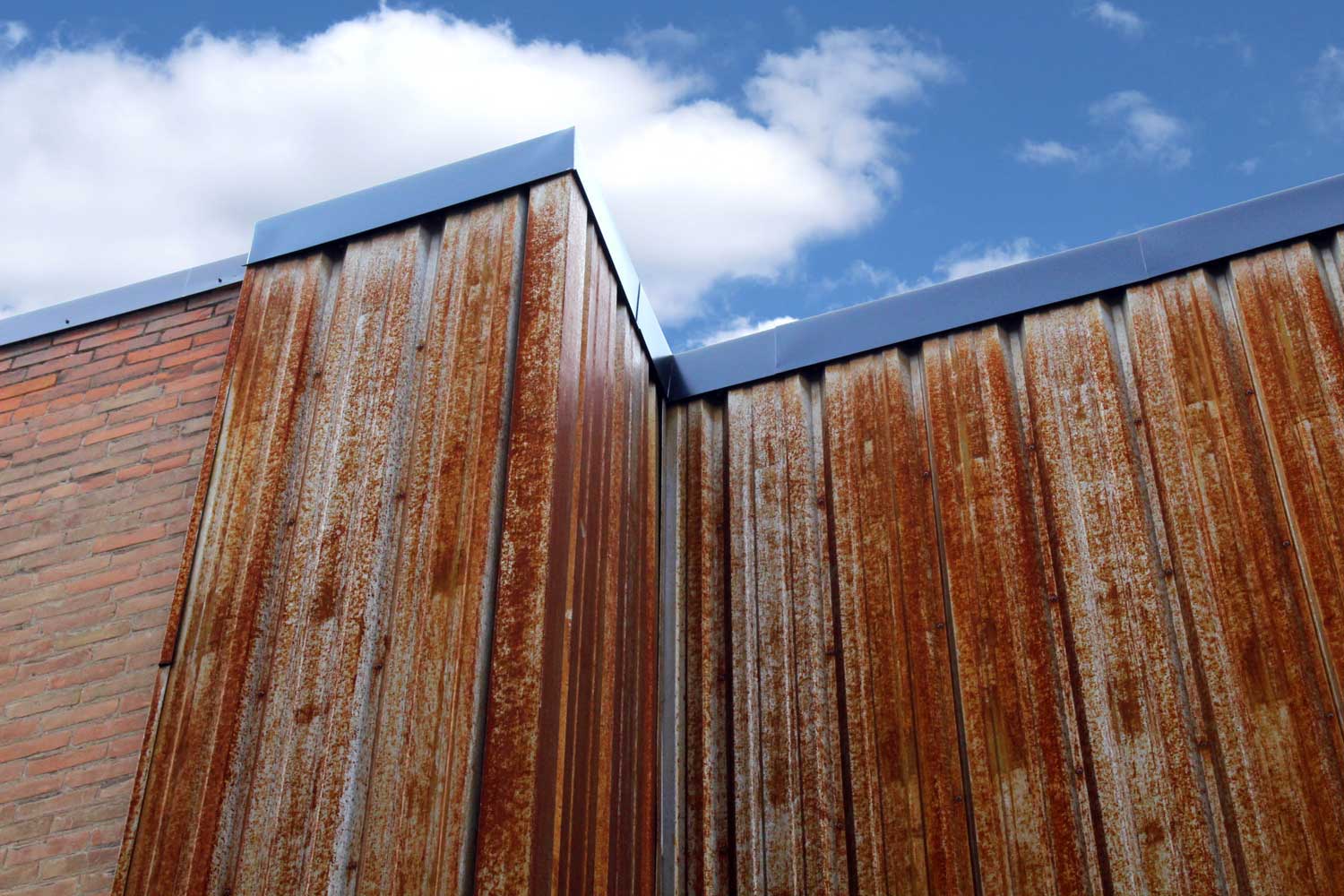

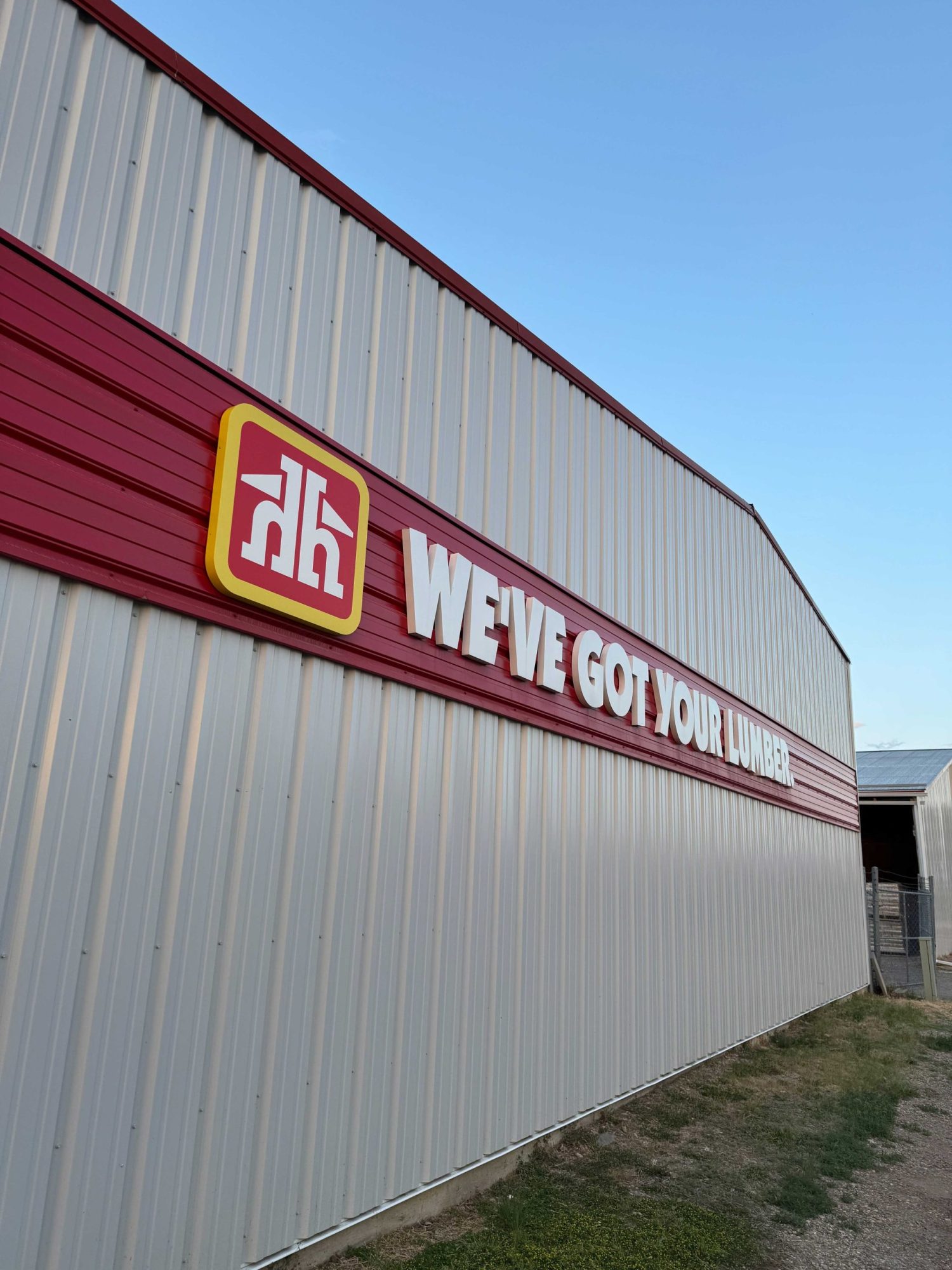

FR Reverse
FR REVERSE
Great For Architectural Applications
Panel Specifications
Application: Wall
Coverage: 36″
Depth: 1-1/4″
Available Gauges: 24 & 26
Available in 40+ Standard Colours & Specialty Finishes
Cutting charge below 48″
More colours & gauges are available by special order
Line Drawing
Available Resources
Click on one of the tabs to get started
FR Panel Brochures
Get everything you need to know all in one page, including available trims & trim codes.
Download the brochures below:
Installation Guide
The use of a proper underlayment is vital to the performance of any roofing system. Forma Steel strongly recommends the use of a peel and stick membrane for any slopes lower than 3/12. Since every project is different, care and attention should be paid to the product that is being specified so that the building performs as designed.
Venting, breathability and water resistance are all components of a building envelope and should be confirmed with building designers for optimal performance.
Custom Trim
Our FR Panel comes in our standard trim collection.
For a detailed view with trim codes, download the full trim list below.
Don’t Forget the Accessories
We have everything you need to complete your installation.
Check out these quick links below:
Available Colours & Finishes
Steel Samples Available
We offer a variety of steel samples to our customers including steel panels, steel colour pieces, and samples rings of our Standard Colours & Specialty Finishes. For an exact representation of colour, we always recommend viewing steel colours in person prior to ordering.
To get samples, find a Forma Steel dealer near you by clicking the button below.
Looking For More?
View our wide range of Rollformed Panels great for various applications with multiple gauge options. Or check out our Inspiration Gallery to view more project photography with even more Colours & Specialty Finishes!
Our Most Popular Panel
Our FC-36 panel is our most widely used 3/4″ panel. Engineered to strike the ultimate balance between economy & strength. Available in 26 & 29 gauge steel.
Where to Buy Forma Steel
We distribute through a network of Forma Steel dealers throughout Western Canada and beyond. We can work with you to acquire the right materials and designs for any creative vision from conception to final physical form.
Ask for Forma Steel at your local building supply store or lumber yard. Or check out our Where to Buy map below!
