ClipLoc
Floating Clip Panel System
The ClipLoc panel system provides the ease of installation, like our Nail Strip panel, but with the flexibilty of a concealed floating clip system. Clips allow the panels to expand and contract with the temperature changes without causing strain or tension on panels or fasteners.
ClipLoc panels are available with striations or minor ribs, which we recommend to minimize the appearance of oil-canning.
Keep scrolling for panel specs, available trims, installation guide, colours & finishes, and project photos!

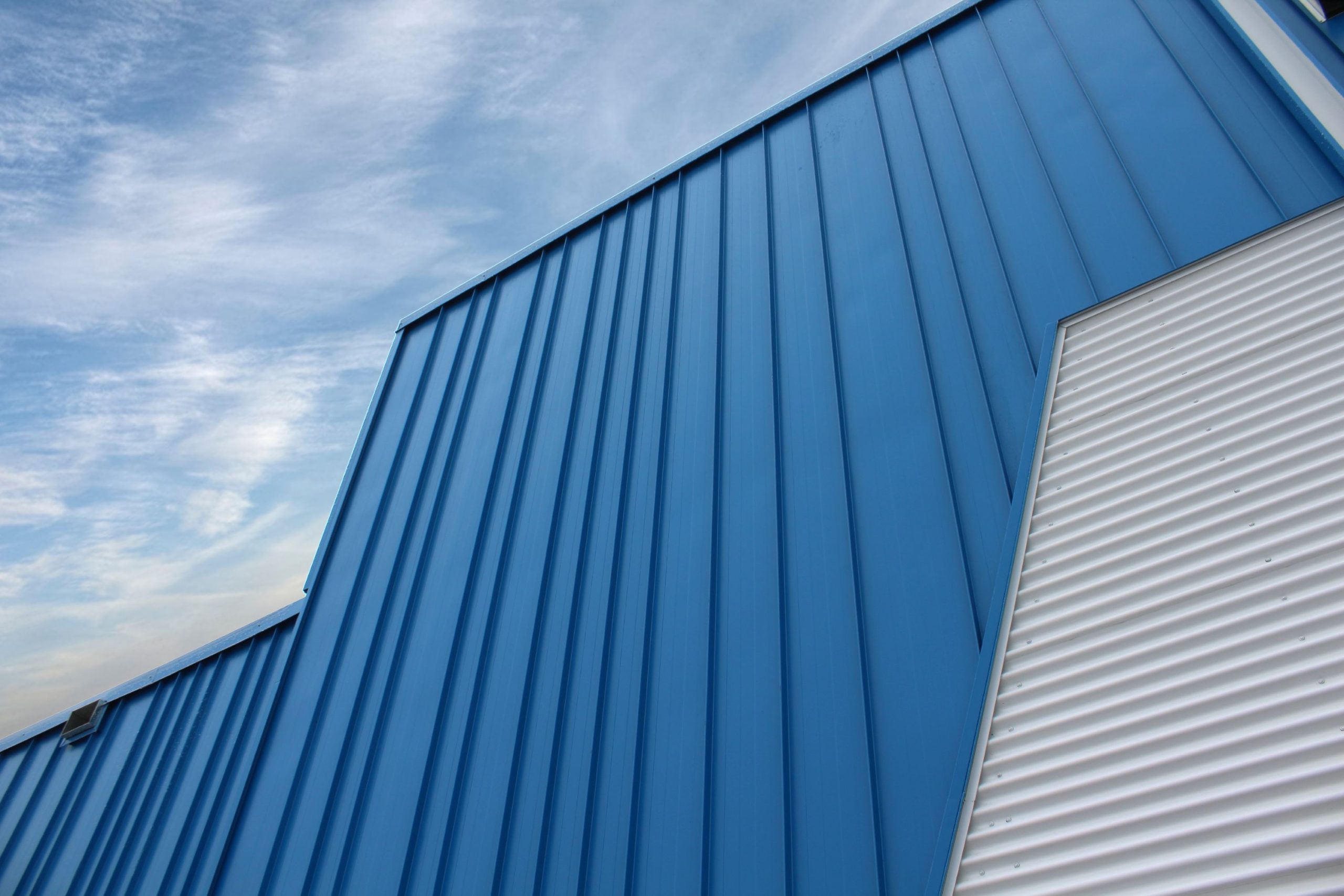

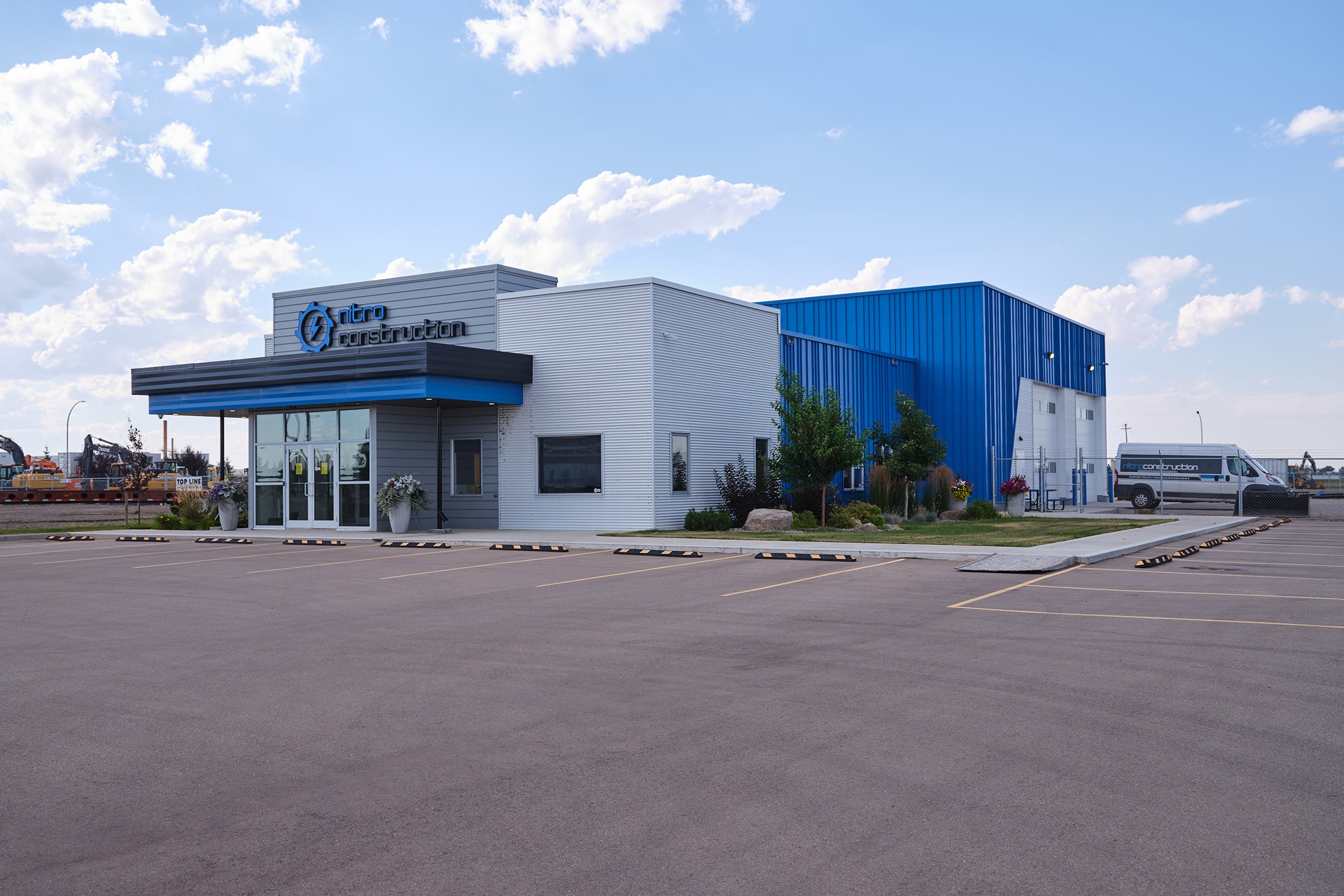

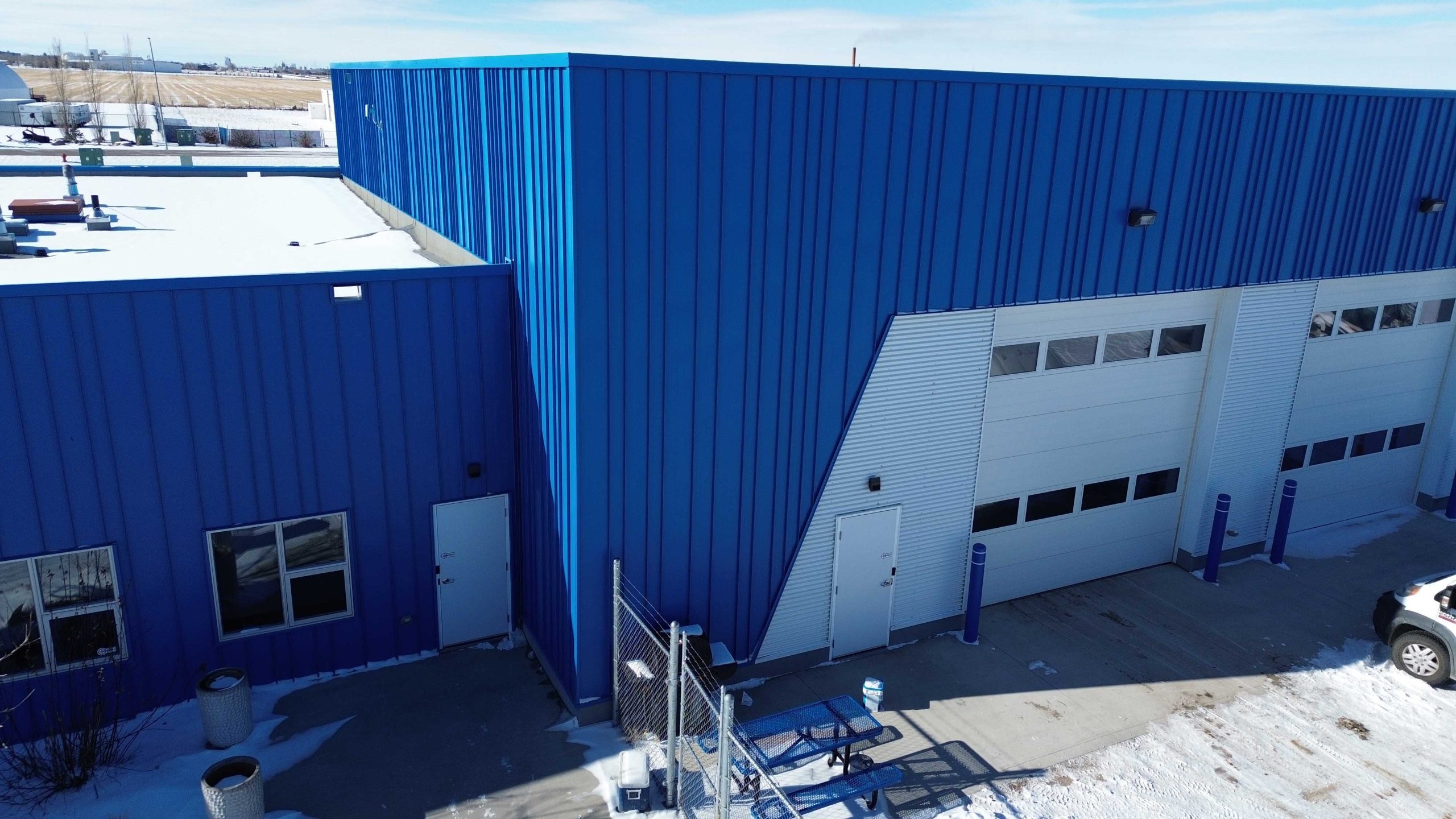

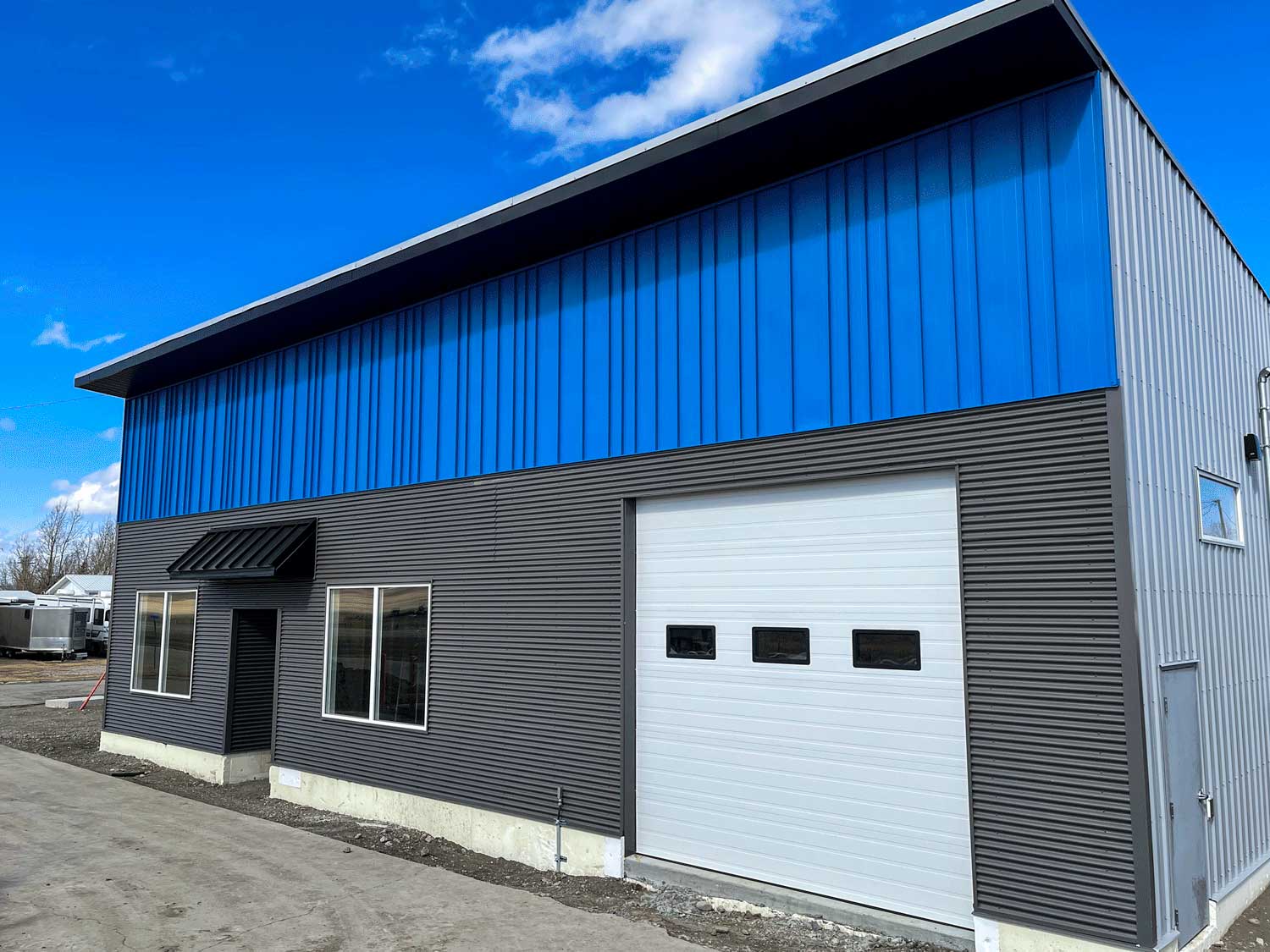

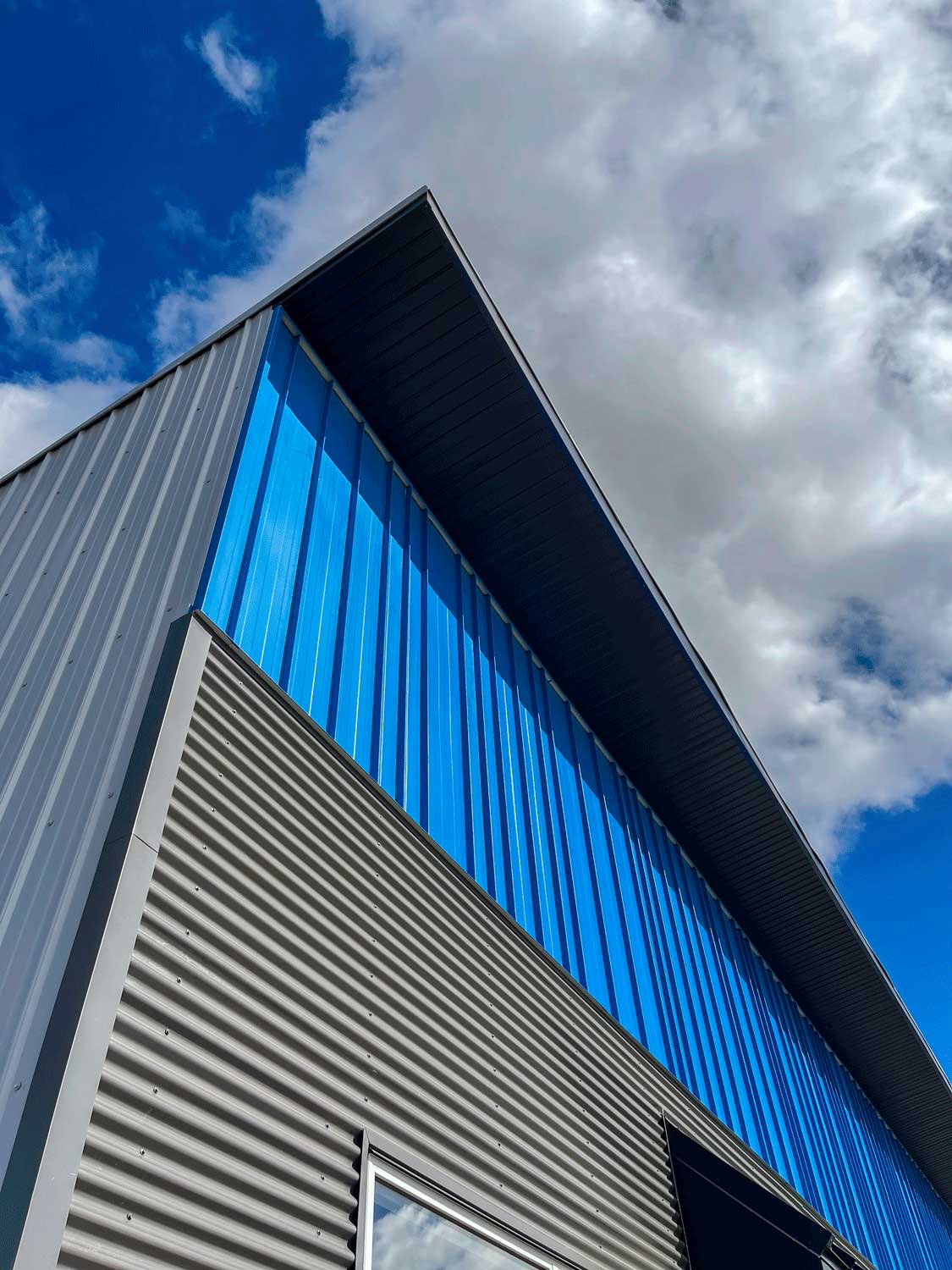

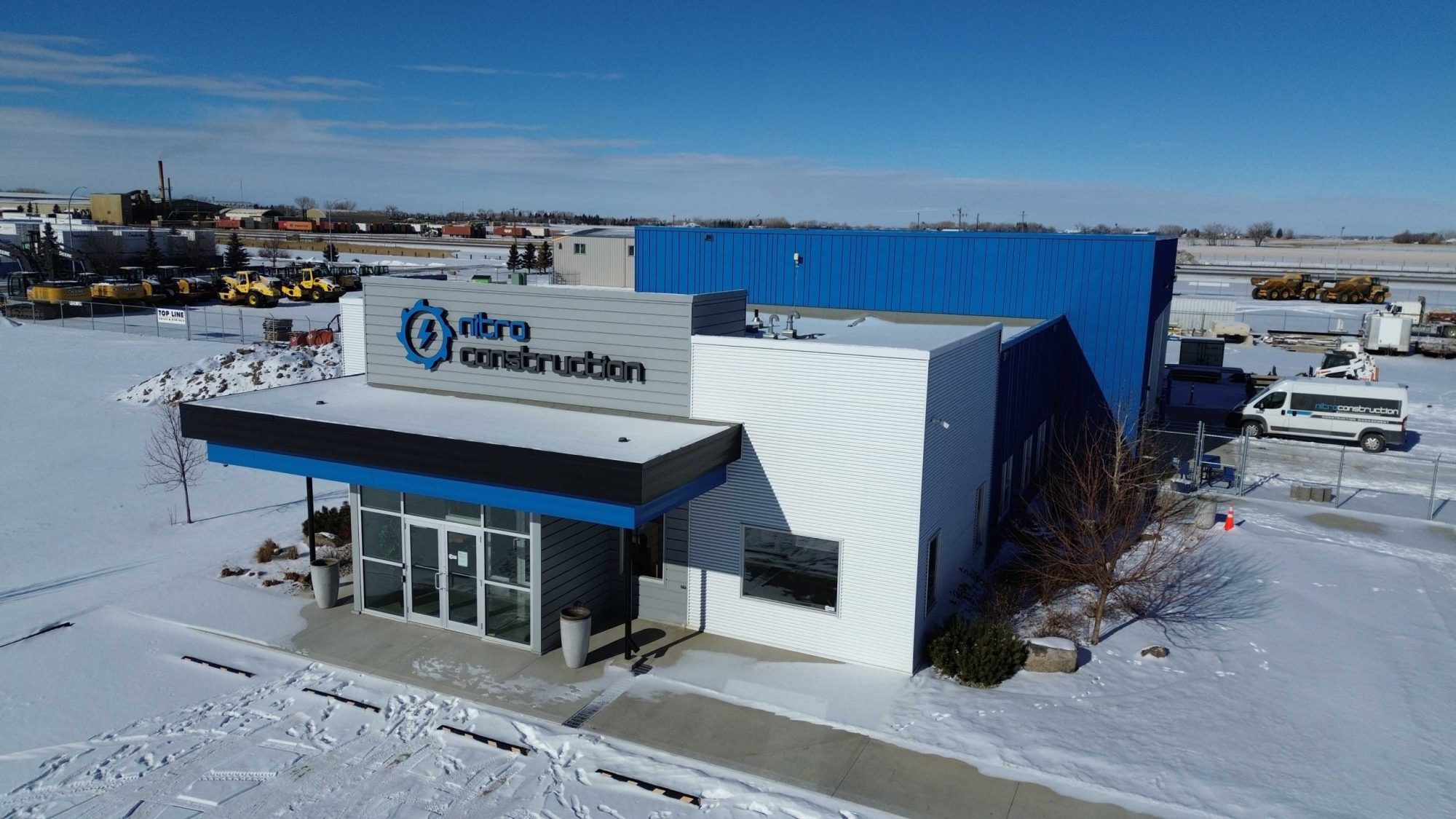

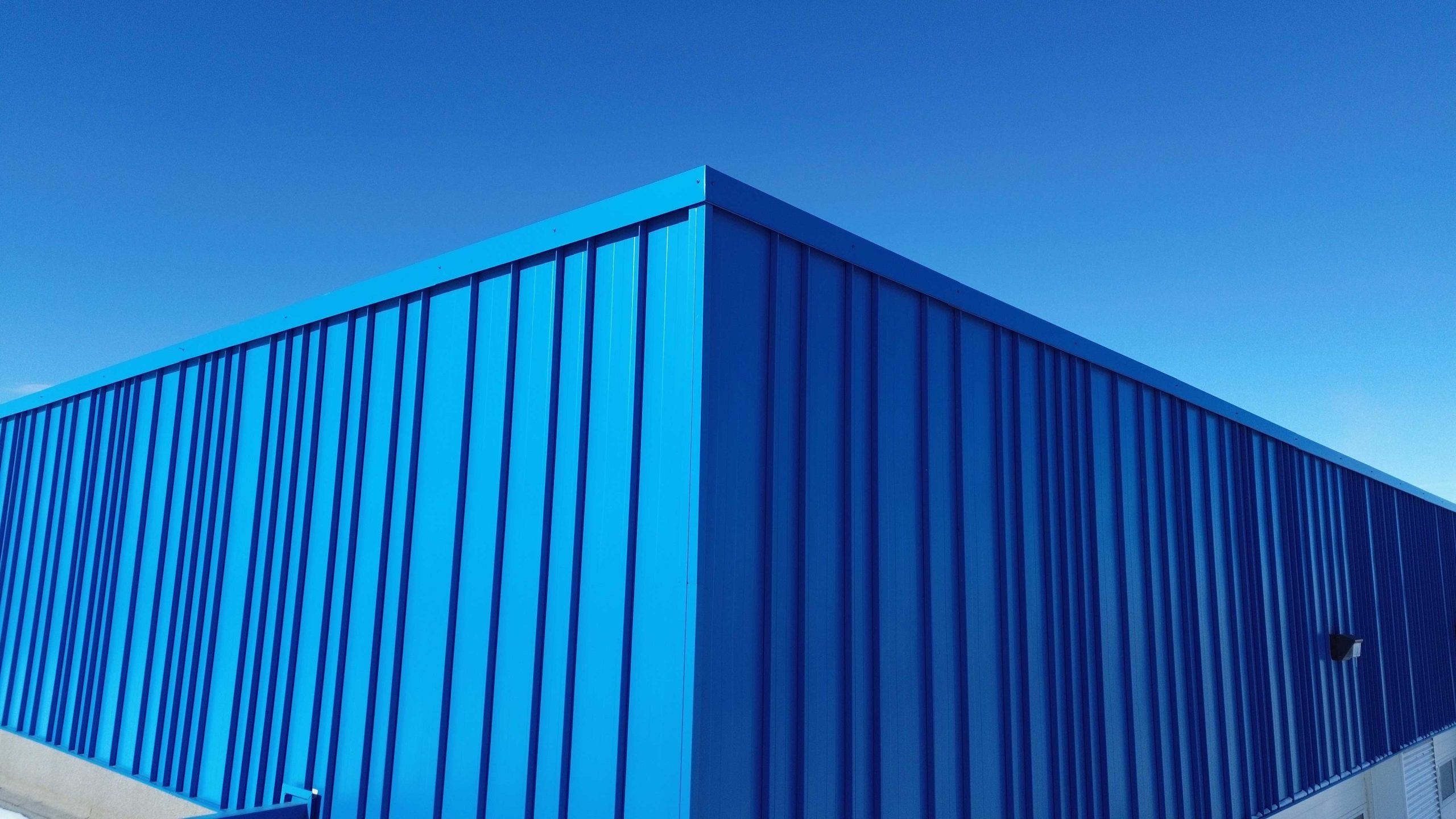

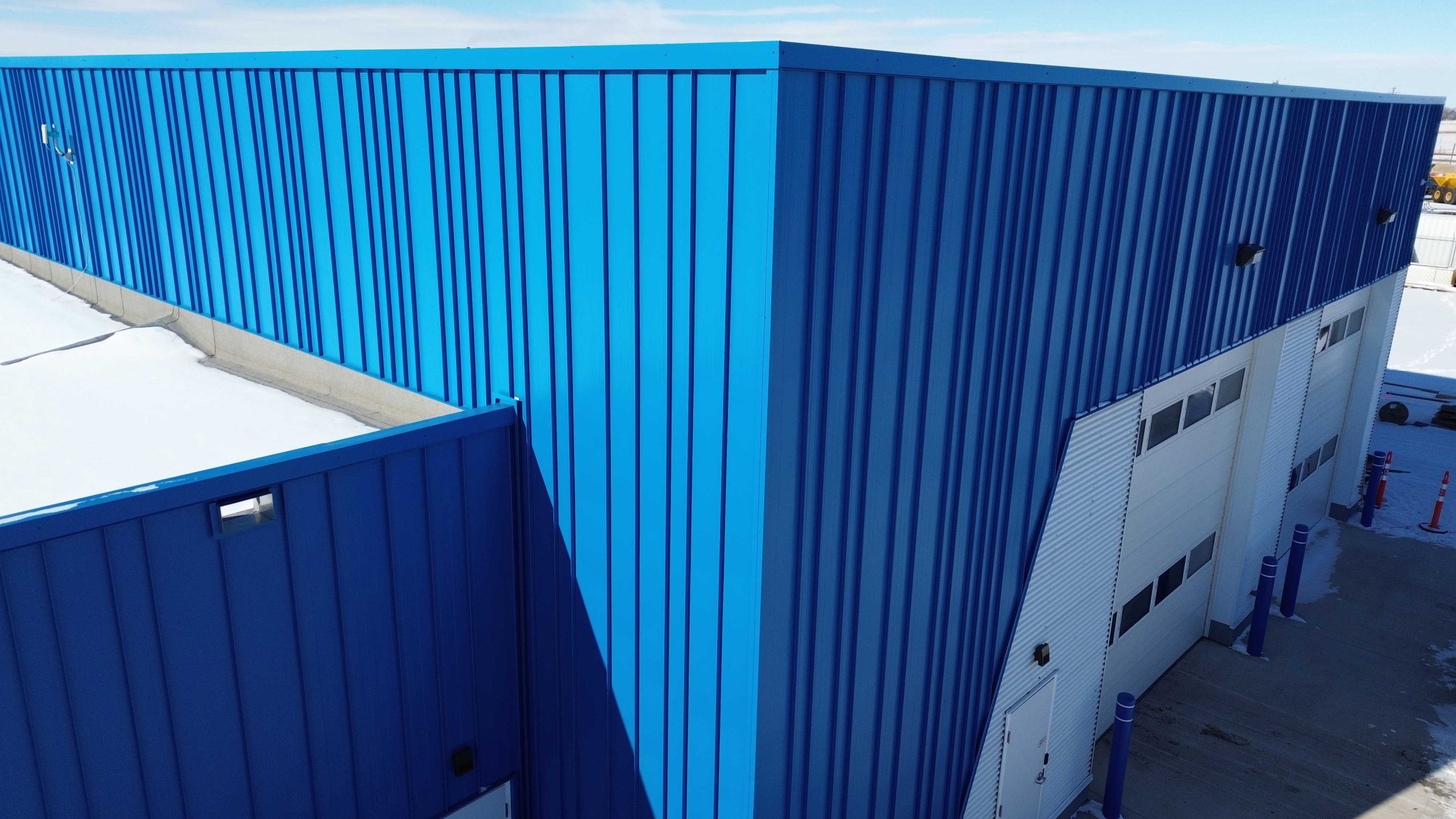

Project Gallery
Panel Specifications
Applications: Roof & Wall
Coverages: 11-1/2″ & 16″ (custom: 7-1/2″ to 19-1/2″)
Panel Length: Up to 50′ (minimum length: 36″)
Available Gauge: 24
Available in 40+ Standard Colours & Specialty Finishes
Substrate: 5/8″ standard plywood minimums / Purlins
Suitable for low sloped roofs down to 1.5/12 or 3/12
Note: Confirm with construction standards and underlayment manufacturing
Allows for expansion without the use of a seaming tool
Note: Extended lead times may apply for custom widths

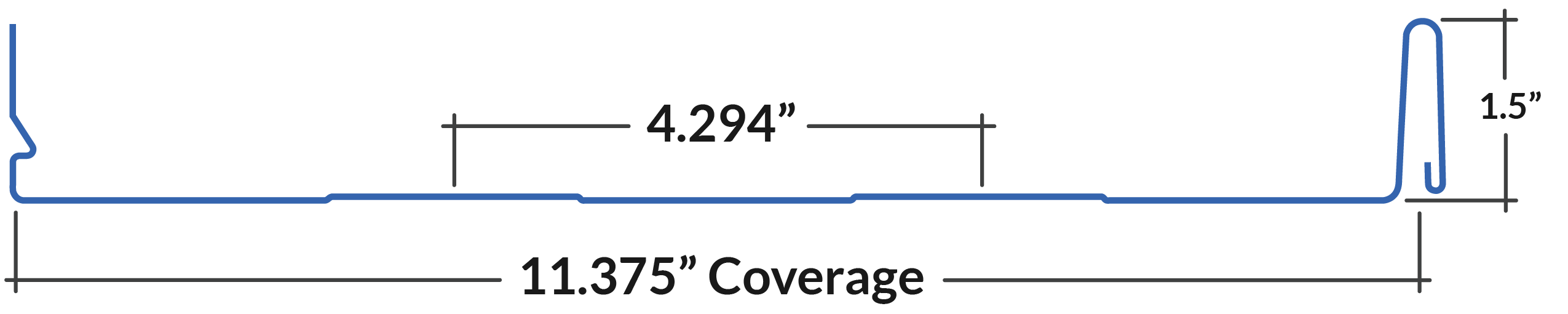

Line Drawings
Available Resources
Click on one of the tabs to get started
ClipLoc Brochure
Get everything you need to know all in one page, including available trims & trim codes.
Notching
Field notching for contractors can be a time-consuming task, but the best installers know that notching panels for attachment at the ridge or eave provide the best results and a clean professionally finished hem every time. Pre-notched panels save time and money on every job. Providing a consistently clean installation for your clients just got a lot easier.
Custom Trim
Our ClipLoc panel comes in our standard 1.5″ trim collections.
For a detailed view with trim codes, download the full trim list below.
Don’t Forget the Accessories
We have everything you need to complete your installation.
Check out these quick links below:
Available Colours & Finishes
Steel Samples Available
We offer a variety of steel samples to our customers including steel panels, steel colour pieces, and samples rings of our Standard Colours & Specialty Finishes. For an exact representation of colour, we always recommend viewing steel colours in person prior to ordering.
To get samples, find a Forma Steel dealer near you by clicking the button below.
Looking For More?
View our wide range of Rollformed Panels great for various applications with multiple gauge options. Or check out our Inspiration Gallery to view more project photography with even more Colours & Specialty Finishes!
Check Out FormaLoc
If you like ClipLoc, consider checking out our FormaLoc panel that offers easy installation for roofers & homeowners alike. Available in 26 & 29 gauge steel.
Where to Buy Forma Steel
We distribute through a network of Forma Steel dealers throughout Western Canada and beyond. We can work with you to acquire the right materials and designs for any creative vision from conception to final physical form.
Ask for Forma Steel at your local building supply store or lumber yard. Or check out our Where to Buy map below!
