Box Rib Series
Folded Box Rib Metal Wall Panel
Our Box Rib metal wall panels create deep shadows and bold visual lines in either horizontal and vertical installations. This panel can be used for commercial and residential applications, as an accent or to clad entire exteriors. The versatile panel can easily fit any project in need of a stylish, yet simple to install panel system and pairs well with other cladding styles.
Available in 5.2″ Box Rib, 6″ Box Rib, 7.2″ Box Rib, & Box Rib Reverse for completely different aesthetics to fit any project in need of a stylish, yet easy to install panel system.
Keep scrolling for panel specs, available trims, installation guide, colours & finishes, and project photos!
Project Gallery
5.2″ Box Rib
5.2″ BOX RIB
Deep Shadows & Bold Visual Lines
Panel Specifications
Applications: Wall & Fence
Coverage: 36.82″
Depth: 1-1/2″
Span: 5.2″
Available Gauge: 24
Available in 40+ Standard Colours & Specialty Finishes
Panel Length: Up to 26’10” (minimum length: 62″)
Cutting charge applies on lengths from 24″ to < 62″
Line Drawing
6″ Box Rib
6″ BOX RIB
The Classic Box Rib
Panel Specifications
Applications: Wall & Fence
Coverage: 36″
Depth: 1-1/2″
Span: 6″
Available Gauge: 24
Available in 40+ Standard Colours & Specialty Finishes
Panel Length: Up to 26′ (minimum length 62″)
Cutting charge applies on lengths from 24″ to < 62″
Line Drawing

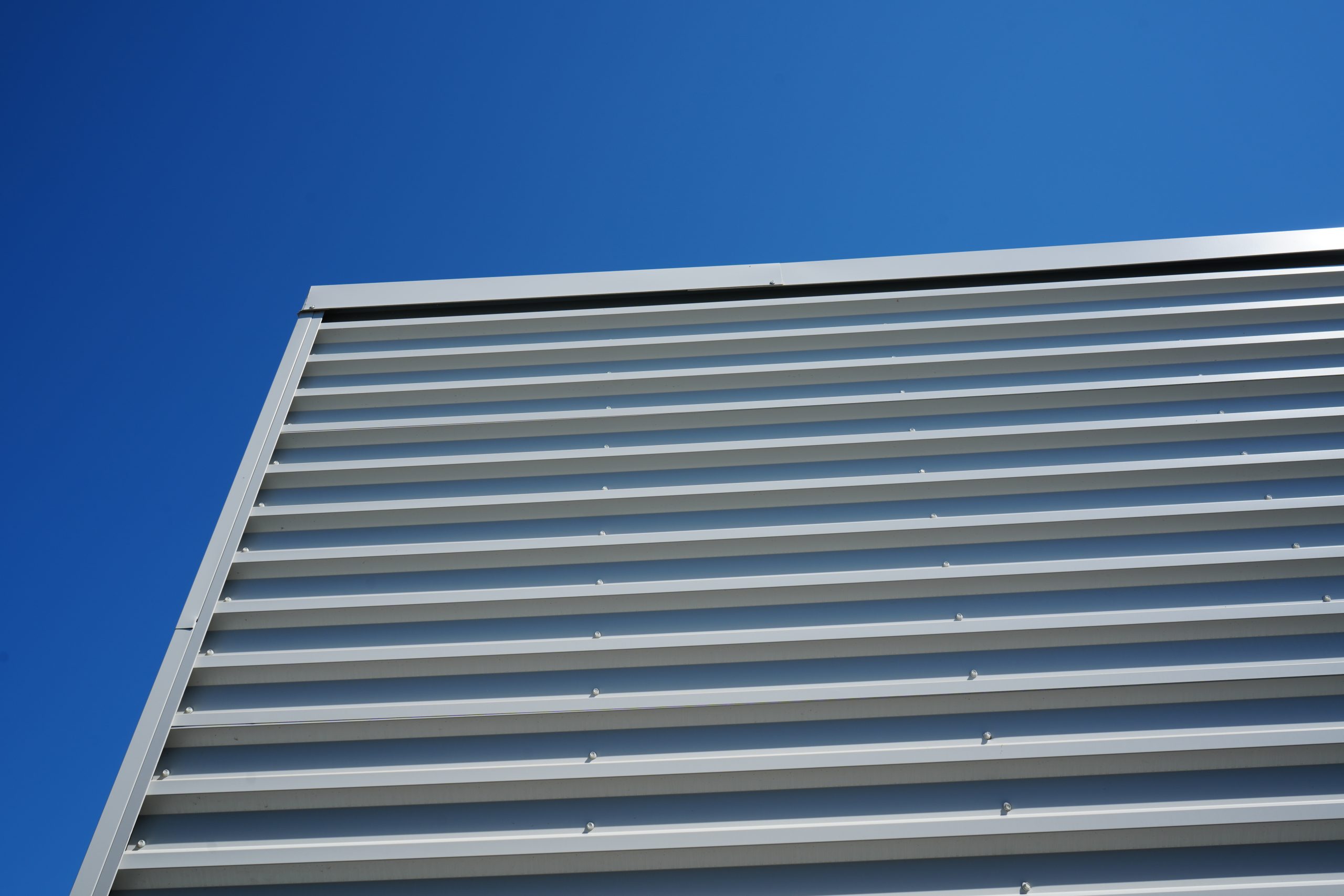

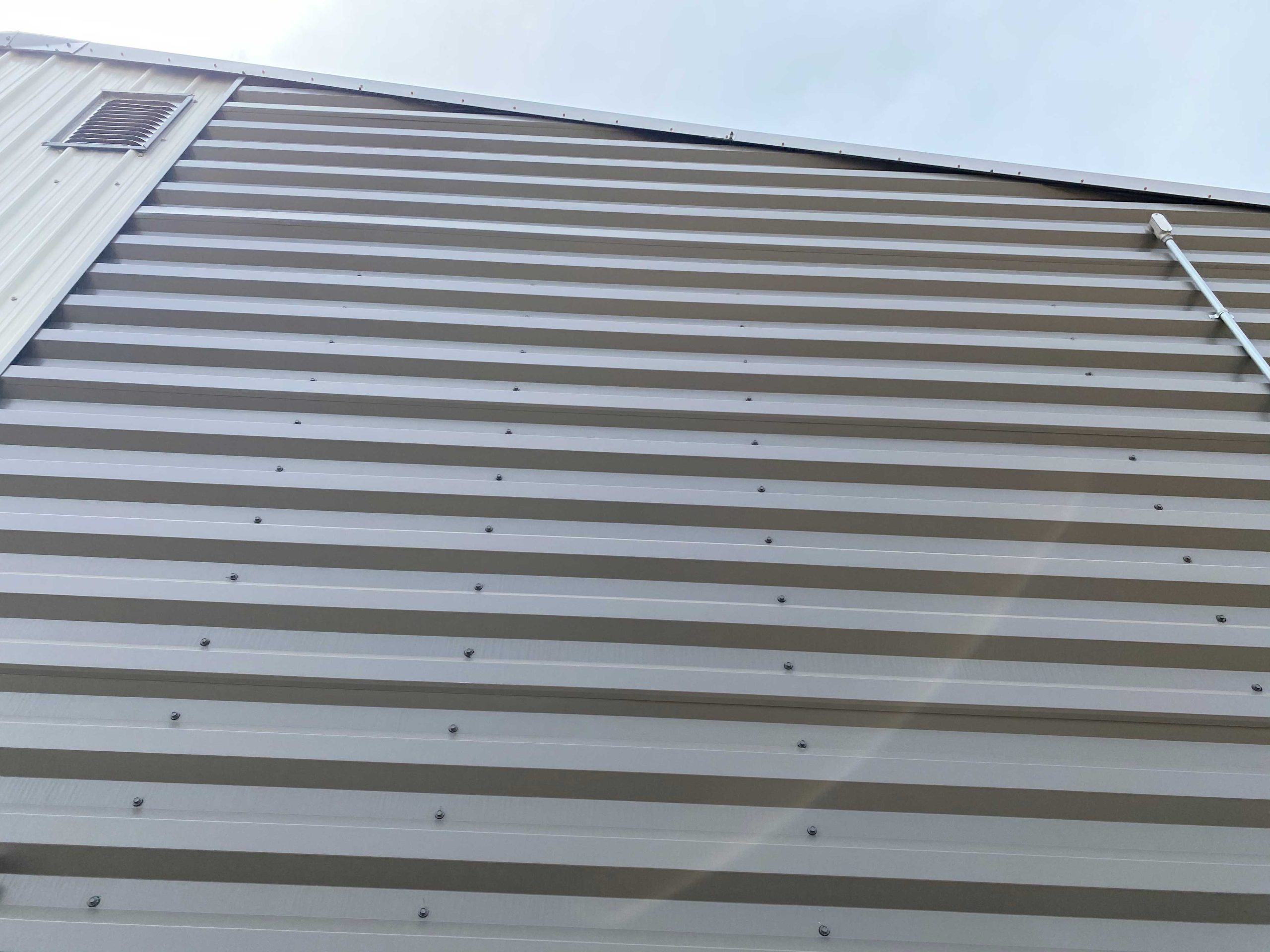

7.2″ Box Rib
7.2″ BOX RIB
The Widest Box Rib
Panel Specifications
Applications: Wall & Fence
Coverage: 36″
Depth: 1-1/2″
Span: 7.2″
Available Gauge: 24
Available in 40+ Standard Colours & Specialty Finishes
Panel Length: Up to 26′ (minimum length 62″)
Cutting charge applies on lengths from 24″ to < 62″
Line Drawing
Available Resources
Click on one of the tabs to get started
Box Rib Brochures
Get everything you need to know all in one page, including available trims & trim codes.
Download the brochures below:
Custom Trim
Our Box Rib panels come in our standard 1.5″ trim collection.
For a detailed view with trim codes, download the full trim list below.
METAL FENCING
Looking for a long-lasting and durable fence option? Check out our fencing page to see Box Rib examples.
7/8″ CORRUGATED PANEL
These panels are highly adaptable and are used in everything from modern residential designs, large-scale commercial projects, to agricultural barns. Can be installed both vertically & horizontally to achieve dynamic designs.
Available Colours & Finishes
Steel Samples Available
We offer a variety of steel samples to our customers including steel panels, steel colour pieces, and samples rings of our Standard Colours & Specialty Finishes. For an exact representation of colour, we always recommend viewing steel colours in person prior to ordering.
To get samples, find a Forma Steel dealer near you by clicking the button below.
Looking For More?
View our wide range of Rollformed Panels great for various applications with multiple gauge options. Or check out our Inspiration Gallery to view more project photography with even more Colours & Specialty Finishes!
Choose From Over 30+ Colours
Browse our collection of Standard Colours crafted from 24, 26, & 29 gauge steel.
Where to Buy Forma Steel
We distribute through a network of Forma Steel dealers throughout Western Canada and beyond. We can work with you to acquire the right materials and designs for any creative vision from conception to final physical form.
Ask for Forma Steel at your local building supply store or lumber yard. Or check out our Where to Buy map below!
