Board & Batten
A Modern Take on a Classic Vertical Siding Profile
Similar to other popular cladding profiles, Board & Batten is a simple yet stylish cladding option for residential and commercial applications that offers a longer lifespan and more design possibilities for your projects.
Available in two coverages with a 2-1/4” wide batten at a depth of 1/2”. The floating clip system offers easy installation with no exposed fasteners, ideal for thermal expansion and contraction.
Be sure to also check out our new roll-formed product, Forma Batten, which is similar in style and strength.
Keep scrolling for panel specs, available trims, installation guide, colours & finishes, and project photos!

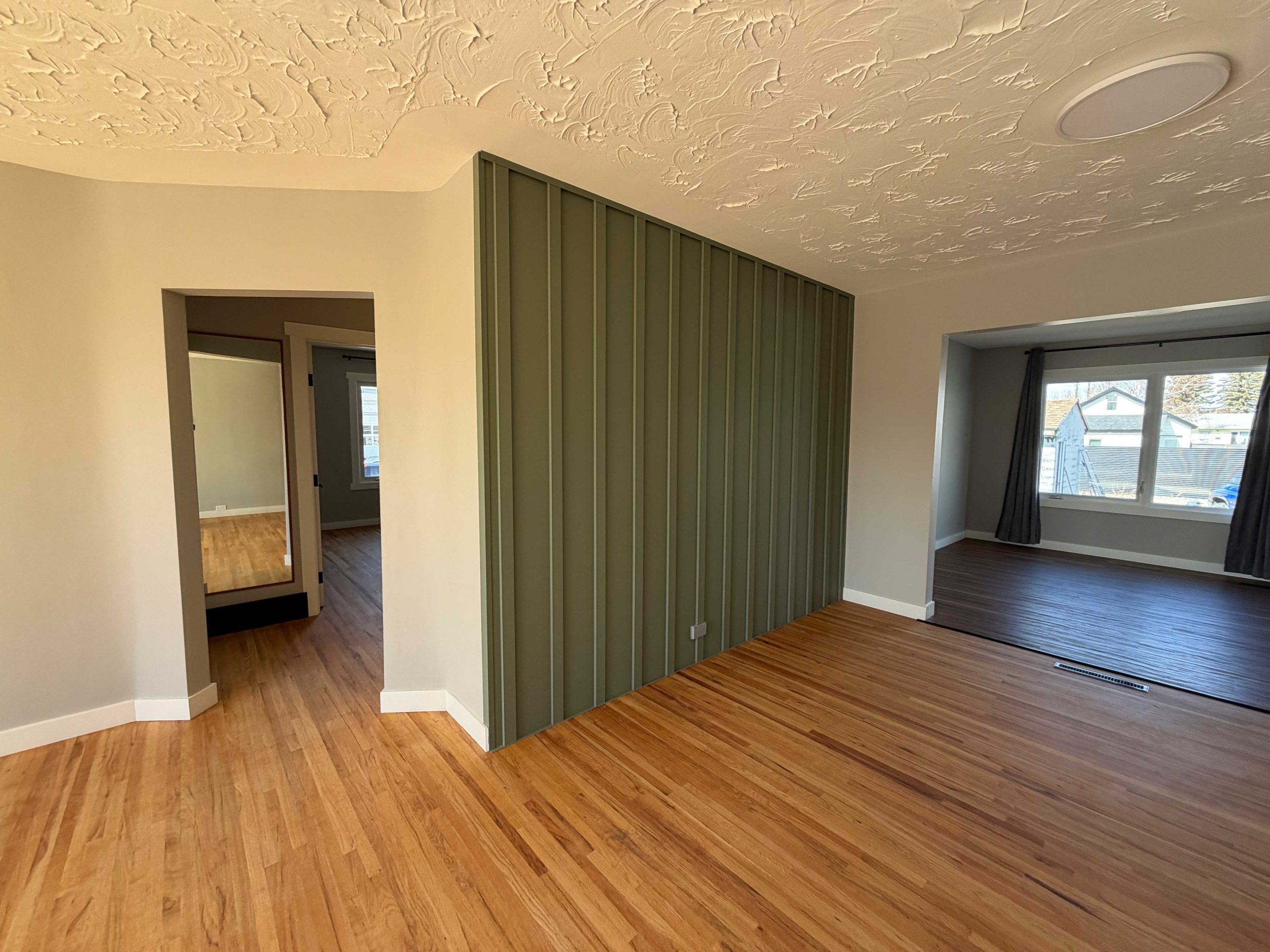

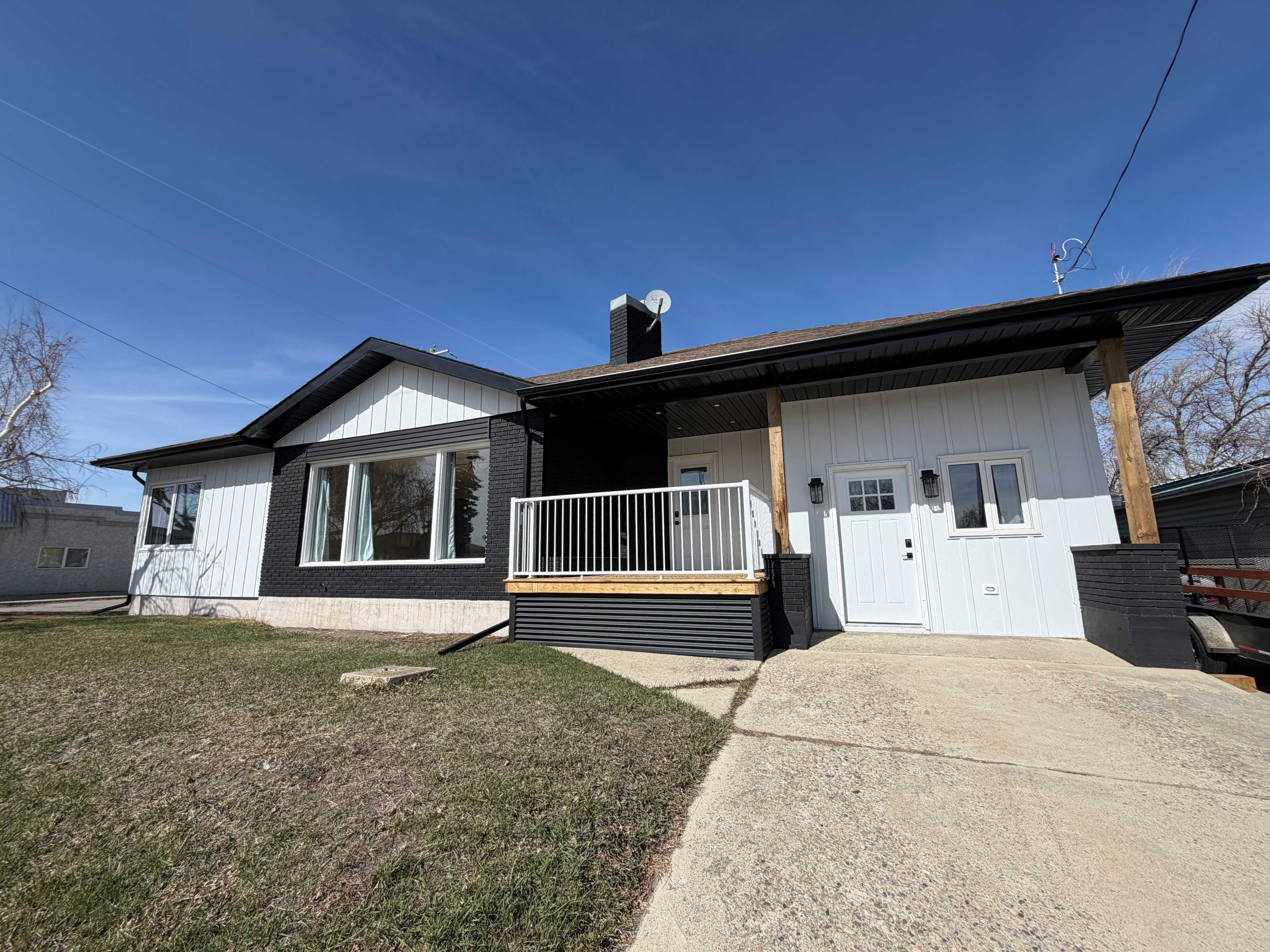

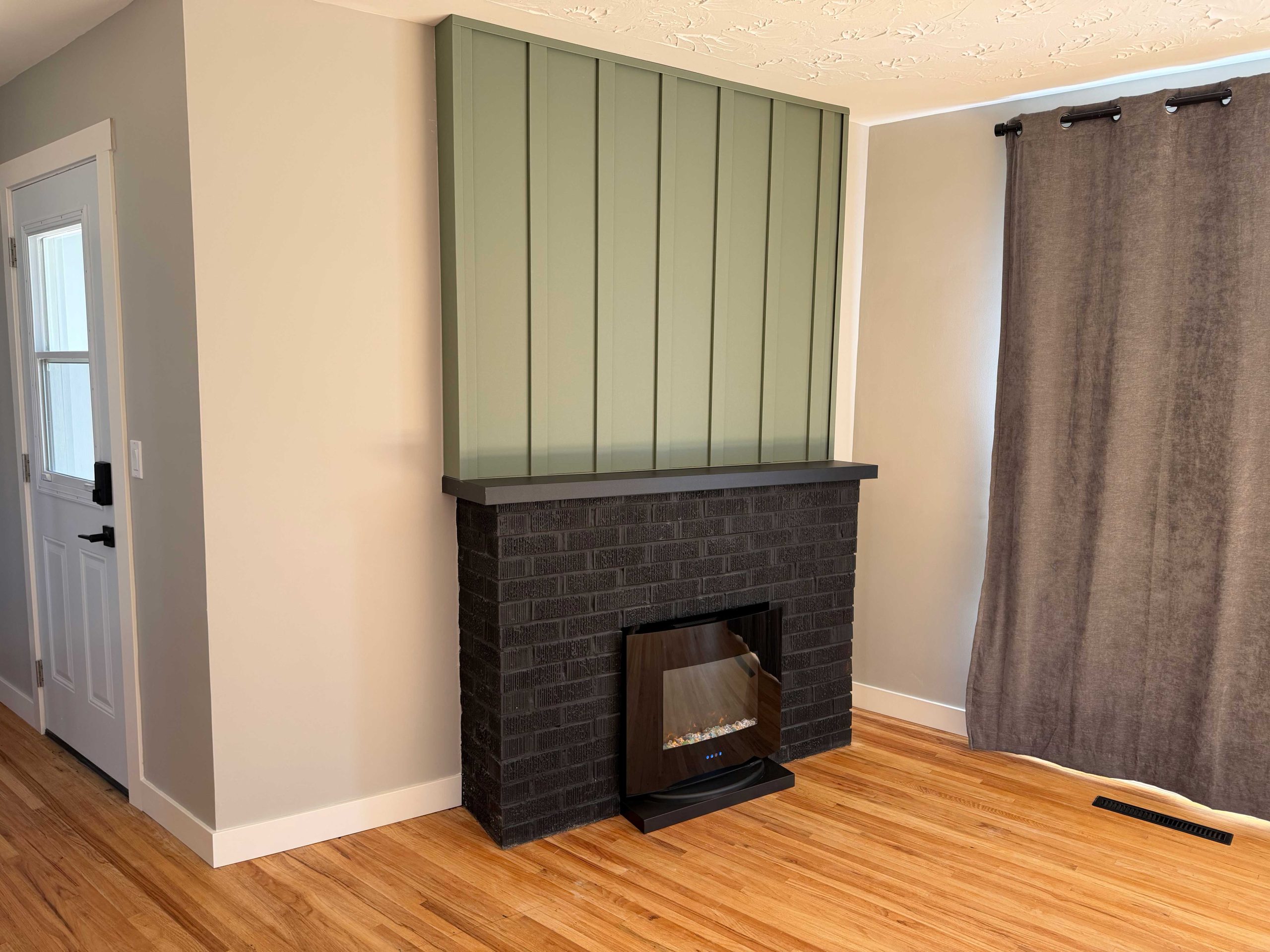

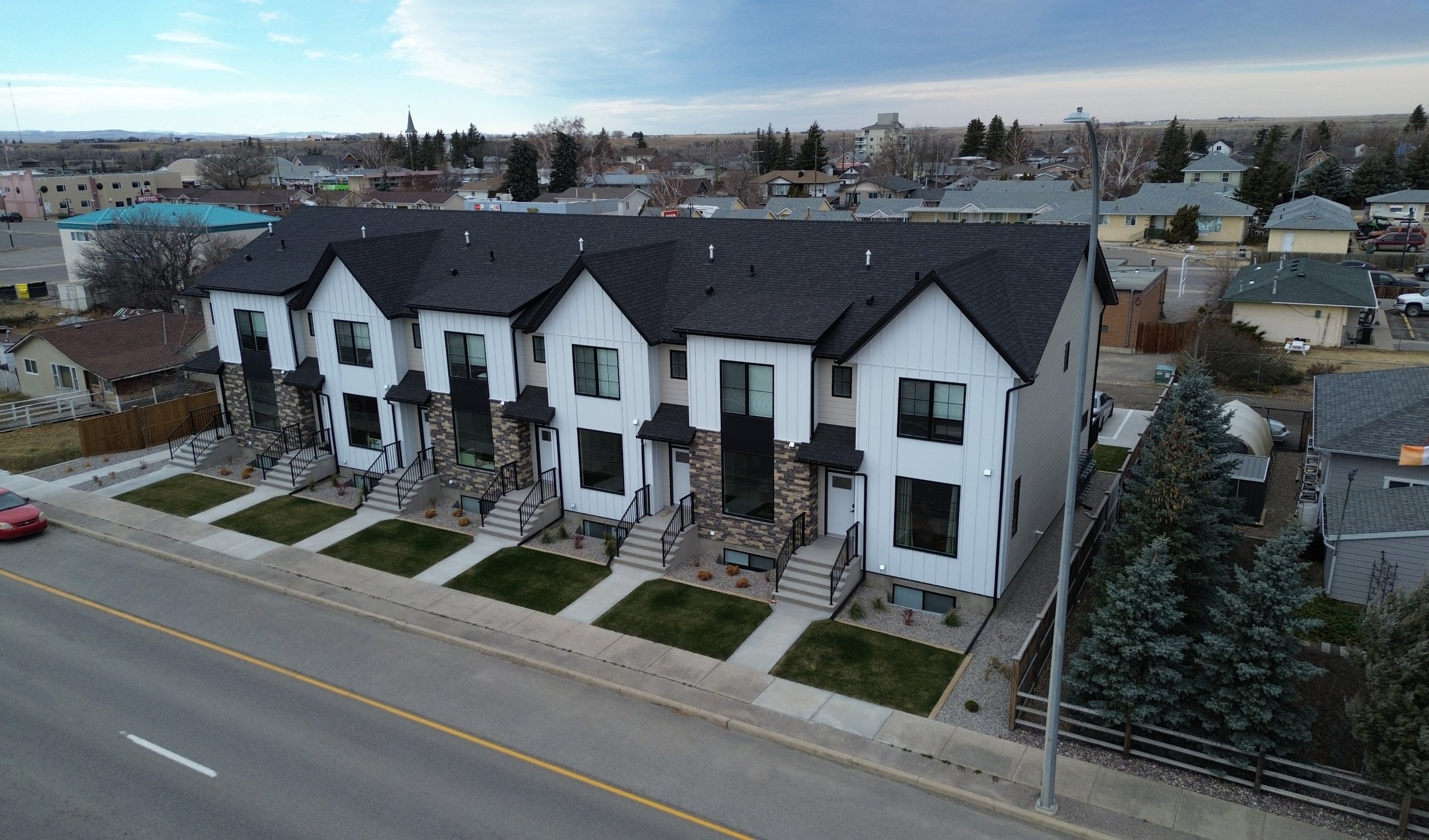

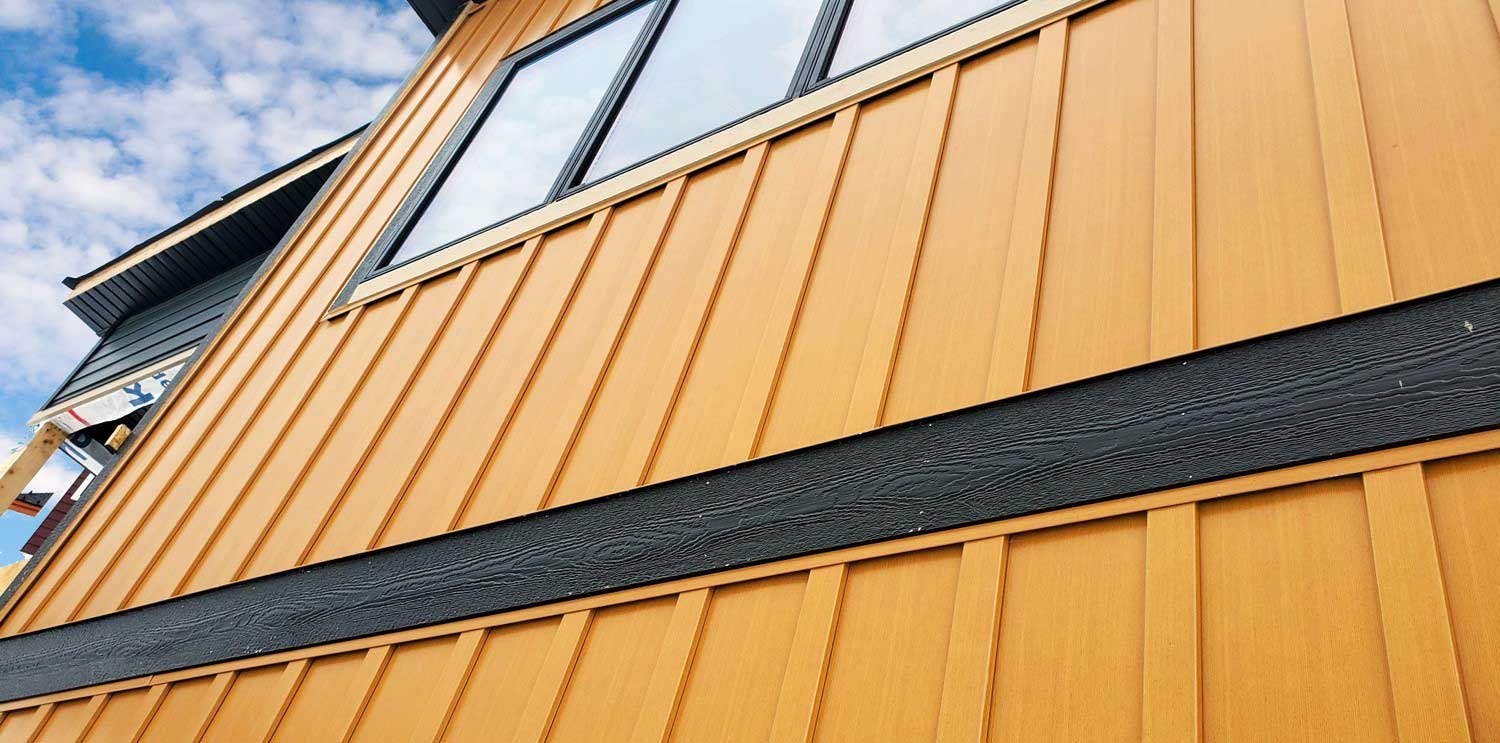

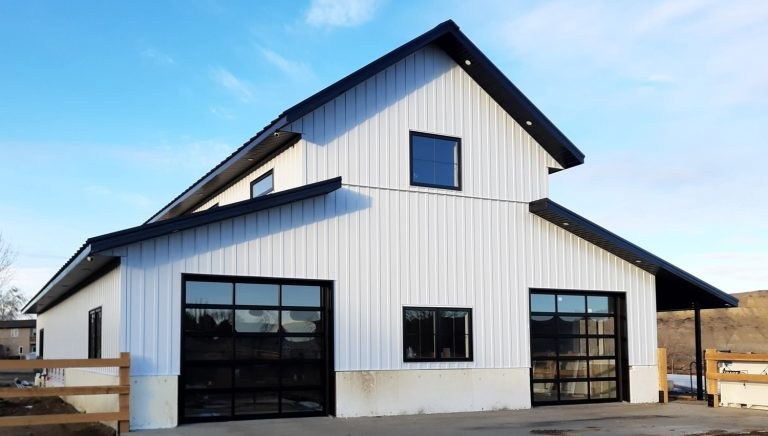

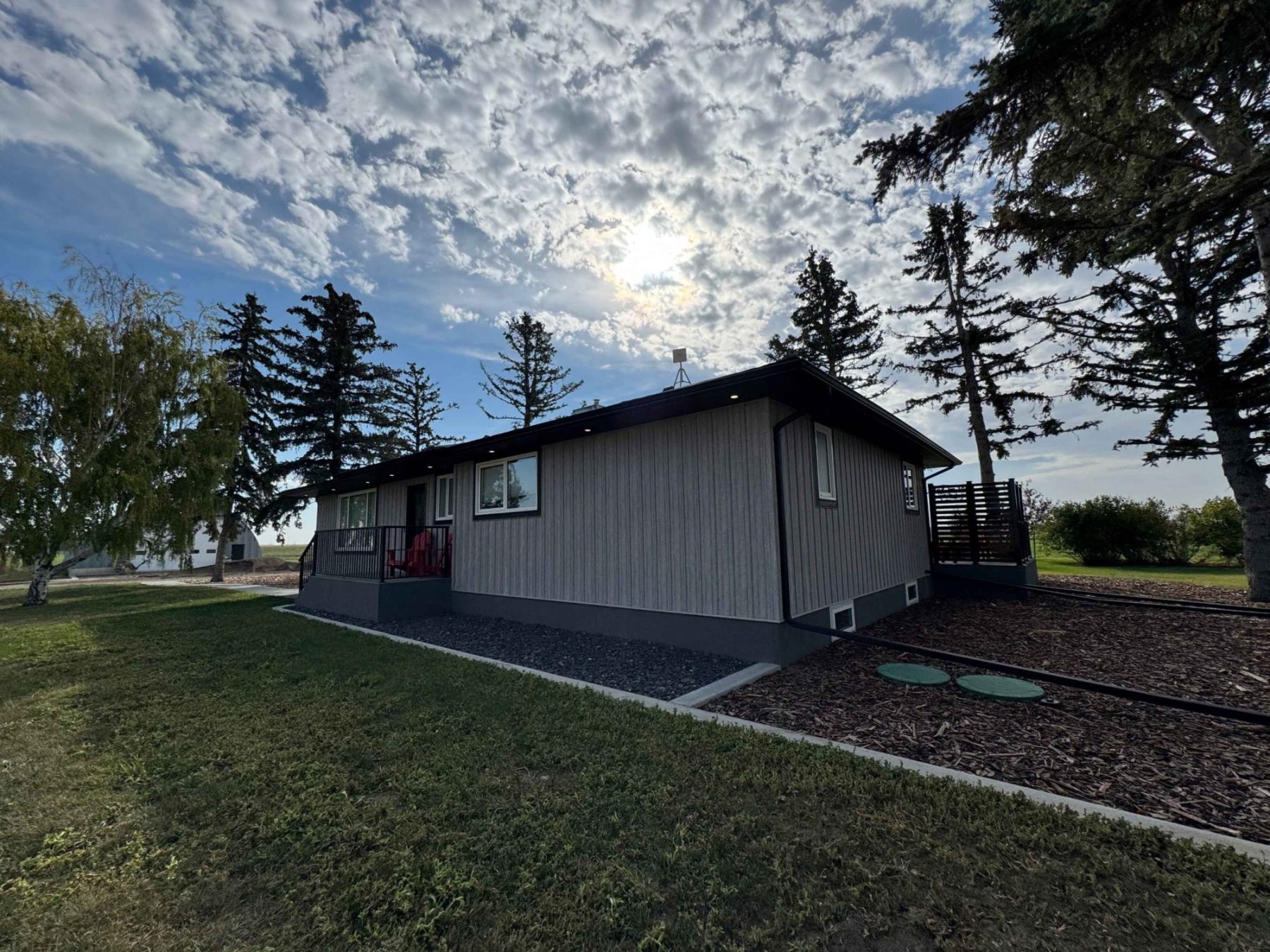

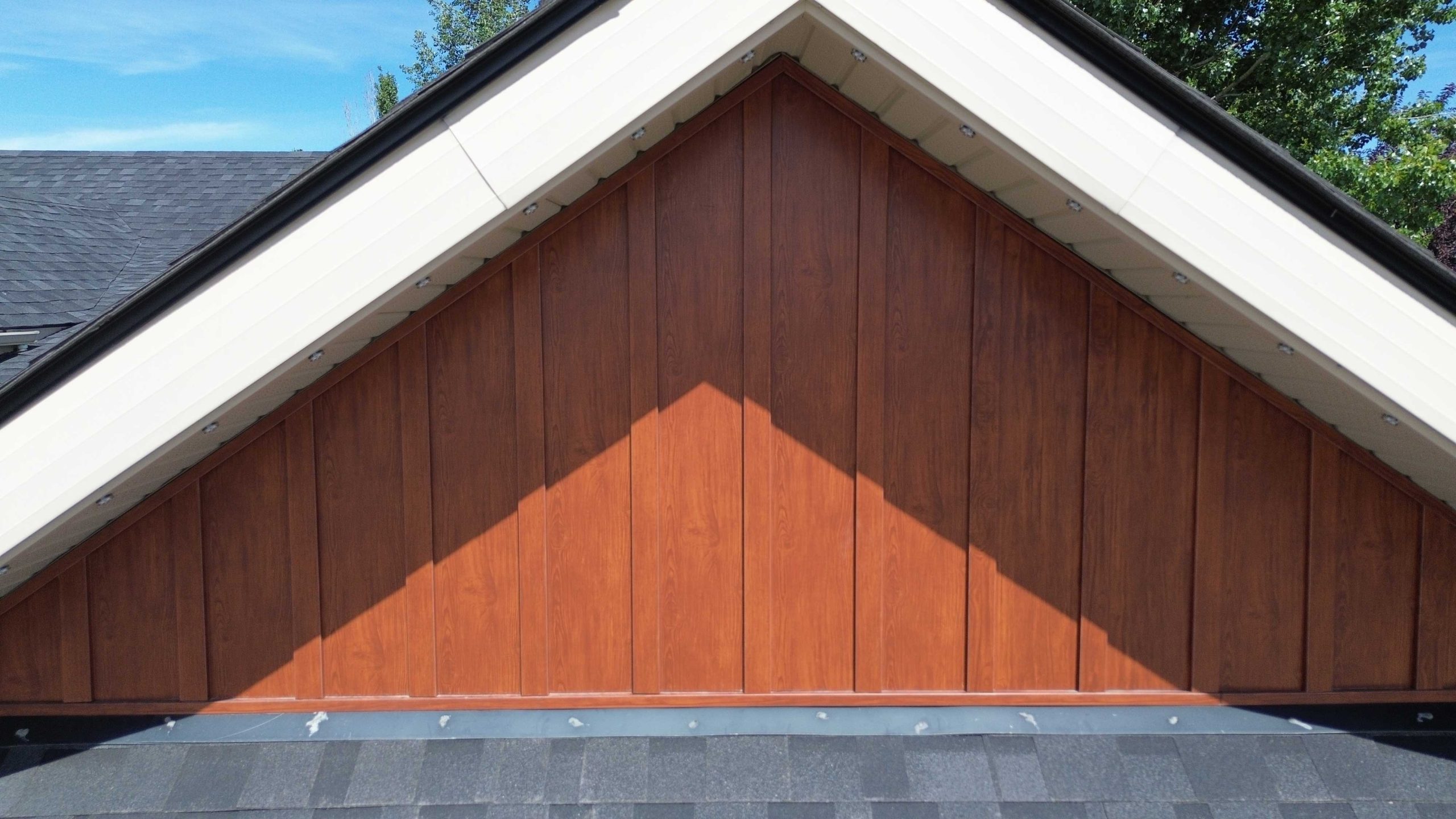

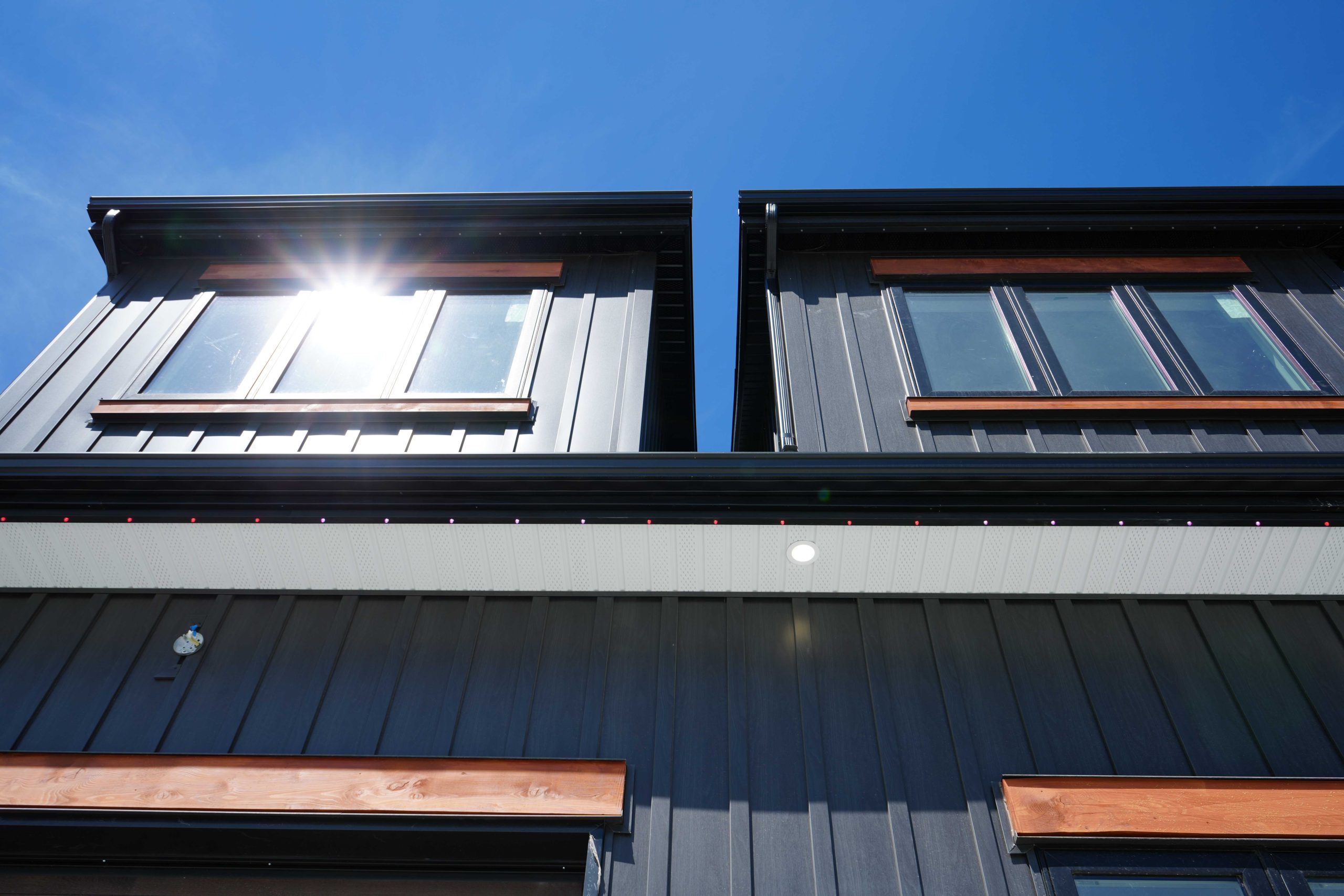

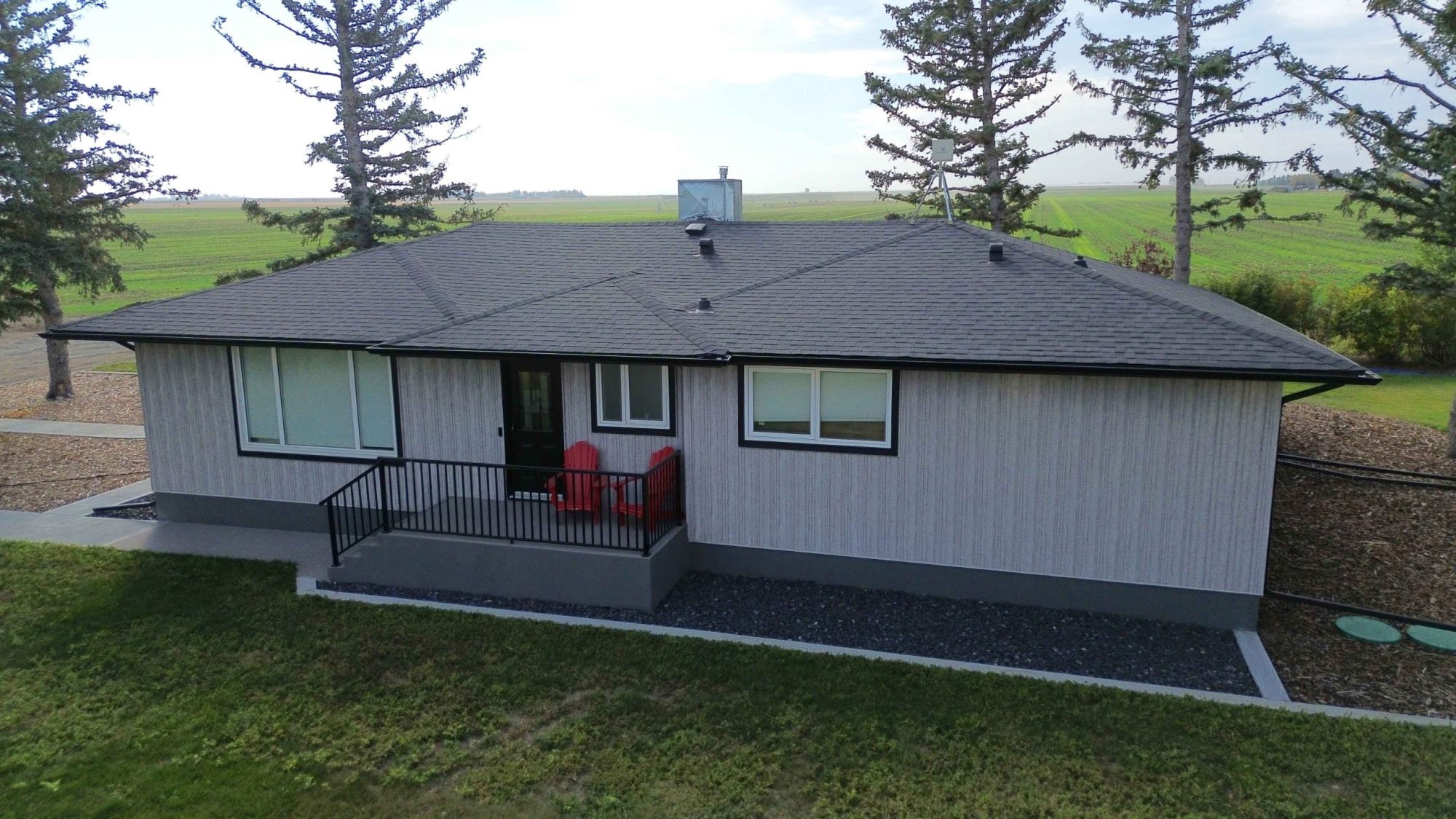

Project Gallery
Click on a photo to view colour & finish details
Board & Batten
Simple Yet Stylish

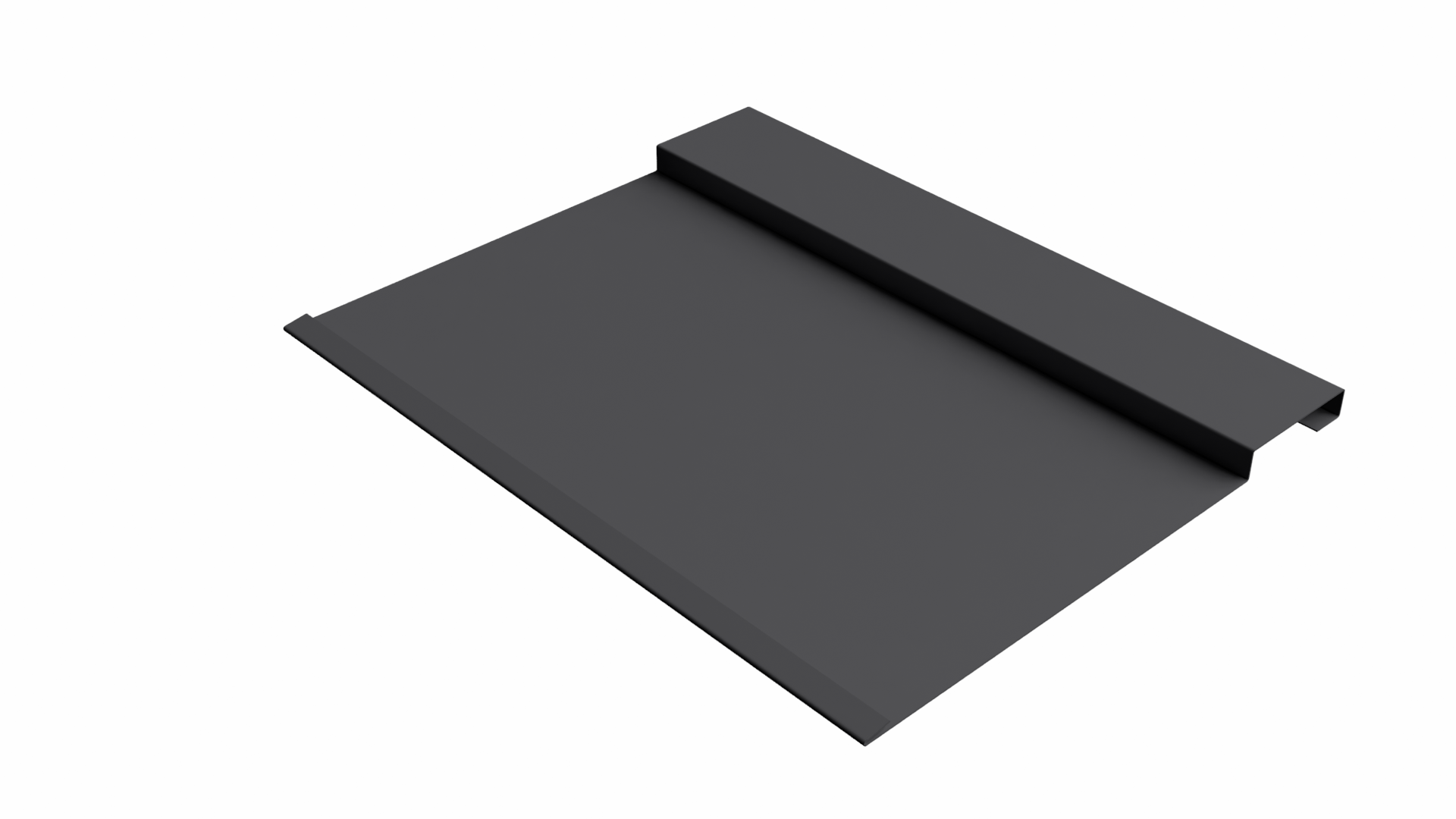

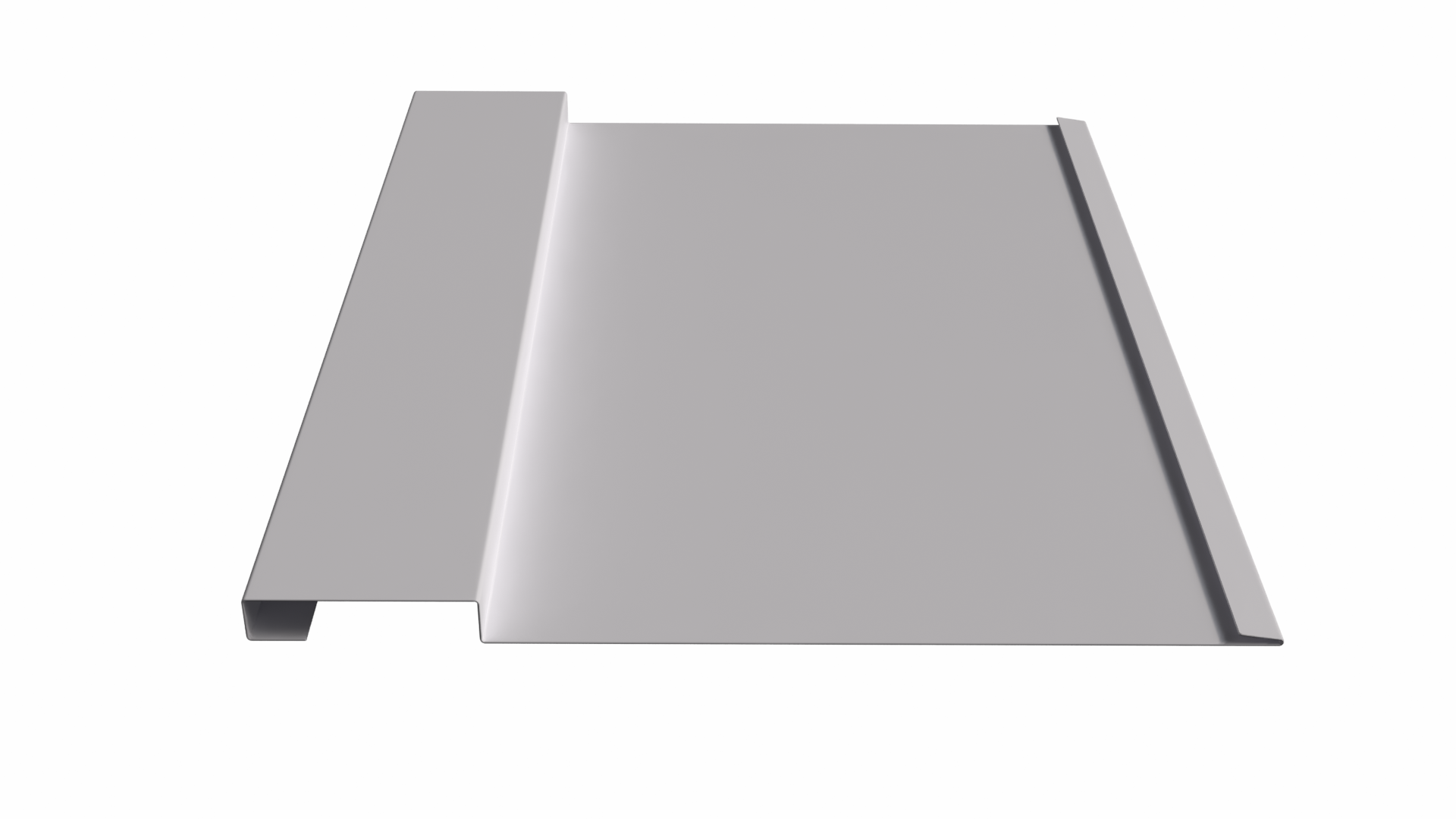

Panel Specifications
Application: Wall

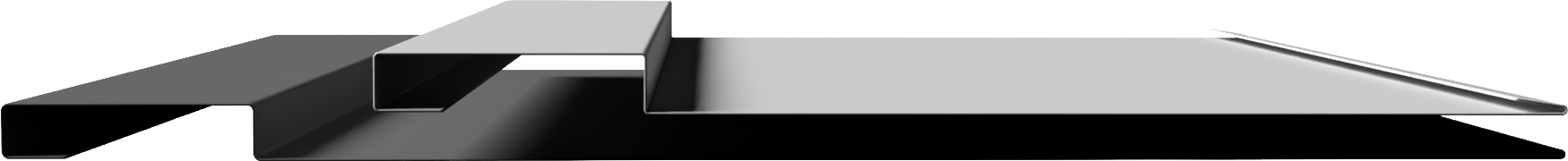

Coverage: 9-3/4″ or 13-1/2″
Depth: 1/2″
Panel Length: Up to 26’10” (minimum length: 62″)
Available Gauge: 24
Available in 40+ Standard Colours & Specialty Finishes
Substrate: 1/2″ standard plywood minimum
Note: Ordered in multiples of 3 & 4
Cutting charge applies on lengths from 24″ to 62″
Recommended: Install over membrane and drainage mat
For 13-1/2″ coverage, we recommend our Specialty Series

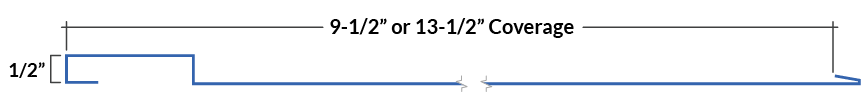

Line Drawing
Forma Batten
Same Classic Look,
But Rollformed
Panel Specifications
Application: Wall
Panel Length: Up to 22′ (minimum length: 12″)
Coverages: 12-3/8″ or 10″
Depth: 3/4″
Available Gauges: 24ga (for 12-3/8″) & 26ga (for 10″)
Available in 40+ Standard Colours & Specialty Finishes
Substrate: 1/2″ standard plywood minimum
Note: Should always be applied over a solid substrate
Line Drawing
Available Resources
Click on one of the tabs to get started
Board & Batten Brochure
Get everything you need to know all in one page, including available trims & trim codes.
Download the brochure below:
Installation Guide
The use of a proper underlayment is vital to the performance of any roofing system. Forma Steel strongly recommends the use of a peel and stick membrane for any slopes lower than 3/12. Since every project is different, care and attention should be paid to the product that is being specified so that the building performs as designed.
Venting, breathability and water resistance are all components of a building envelope and should be confirmed with building designers for optimal performance.
Custom Trim
Our Board & Batten panels come in our standard 1/2″ trim collection. Our Forma Batten panels come in our Forma Batten trim collection.
For a detailed view with trim codes, download the full trim list below.
Available Colours & Finishes
Steel Samples Available
We offer a variety of steel samples to our customers including steel panels, steel colour pieces, and samples rings of our Standard Colours & Specialty Finishes. For an exact representation of colour, we always recommend viewing steel colours in person prior to ordering.
To get samples, find a Forma Steel dealer near you by clicking the button below.
Looking For More?
Visit the Cladding Series page for the full collection of profiles. Or check out our Inspiration Gallery to view more project photography with even more Colours & Specialty Finishes!
Get Textures You Can Feel
Our Textured Series delivers eye-catching, 3D visual effects to the product, while providing a surface that is more durable and scratch-resistant than standard pre-painted product.
Where to Buy Forma Steel
We distribute through a network of Forma Steel dealers throughout Western Canada and beyond. We can work with you to acquire the right materials and designs for any creative vision from conception to final physical form.
Ask for Forma Steel at your local building supply store or lumber yard. Or check out our Where to Buy map below!
