7/8" Corrugated
Incredible Impact Resistance & Structural Stability

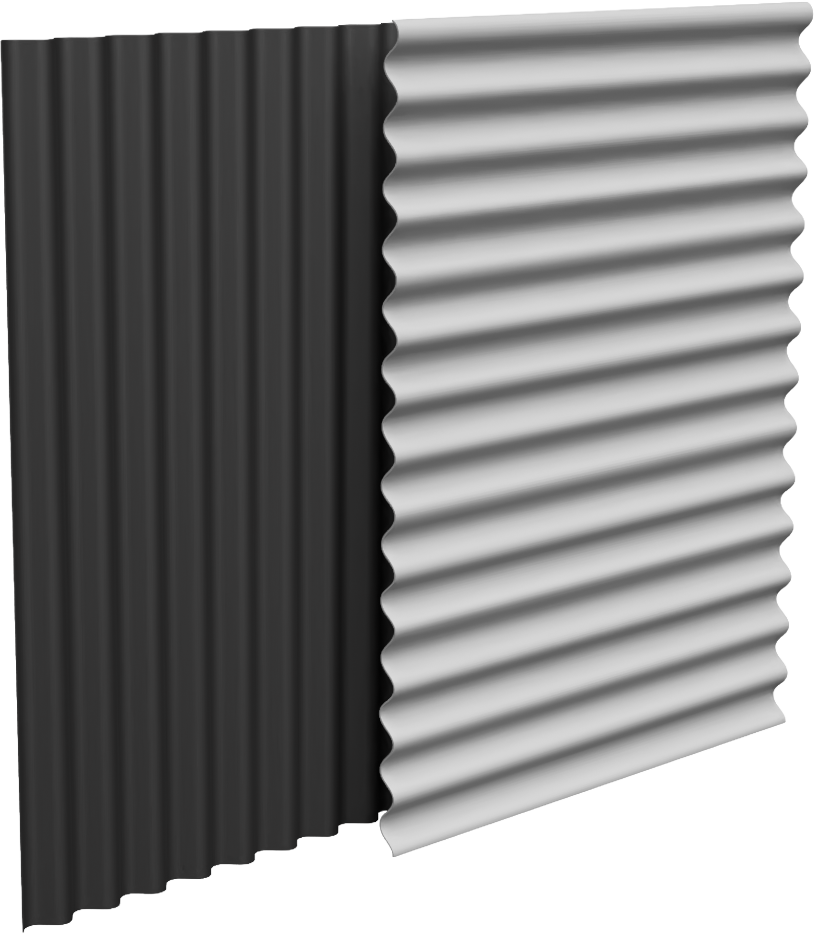

Our high-strength 7/8″ Corrugated panels (available in 32-7/8″ & 37-7/8″) feature a wave-like profile ideal for a variety of applications from roofing, siding, to decorative accents. These panels are highly adaptable and are used in everything from modern residential designs, large-scale commercial projects, to agricultural barns. Can be installed both vertically & horizontally to achieve dynamic designs.
With incredible impact resistance and exceptional structural stability, these panels are ideal in environments with high impact, wind, and snow volume.
Keep scrolling for panel specs, available trims, installation guide, colours & finishes, and project photos!

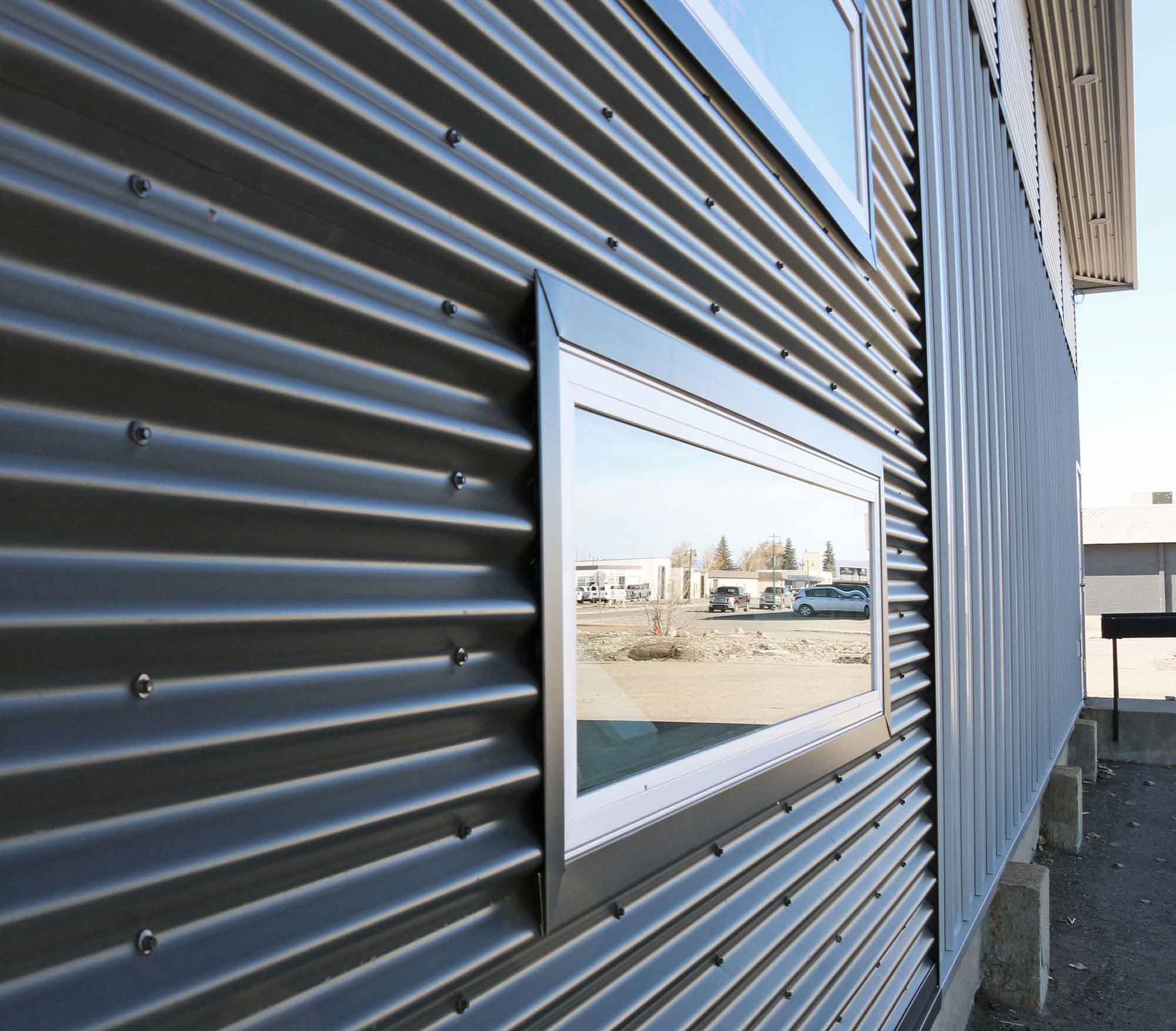

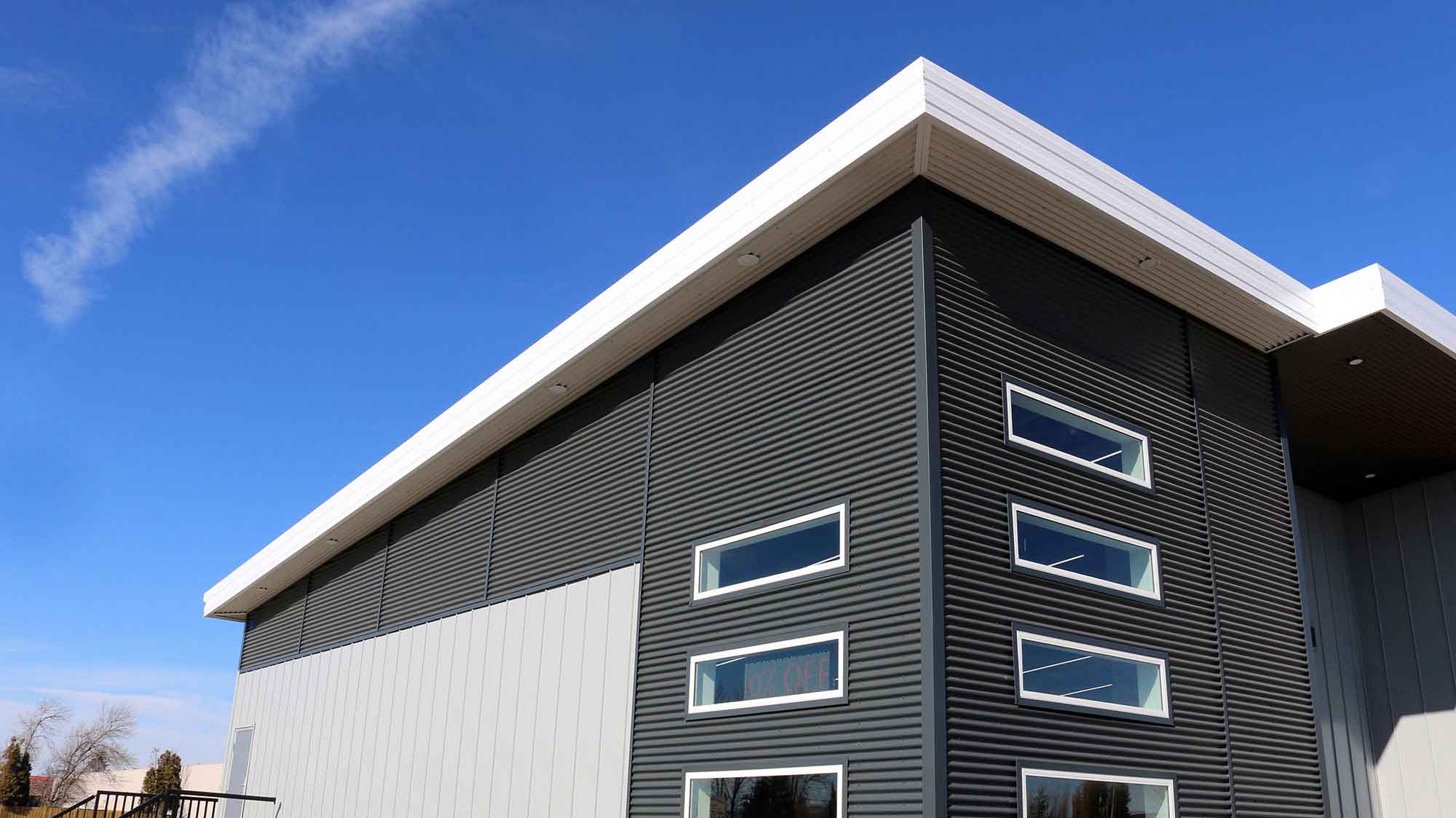

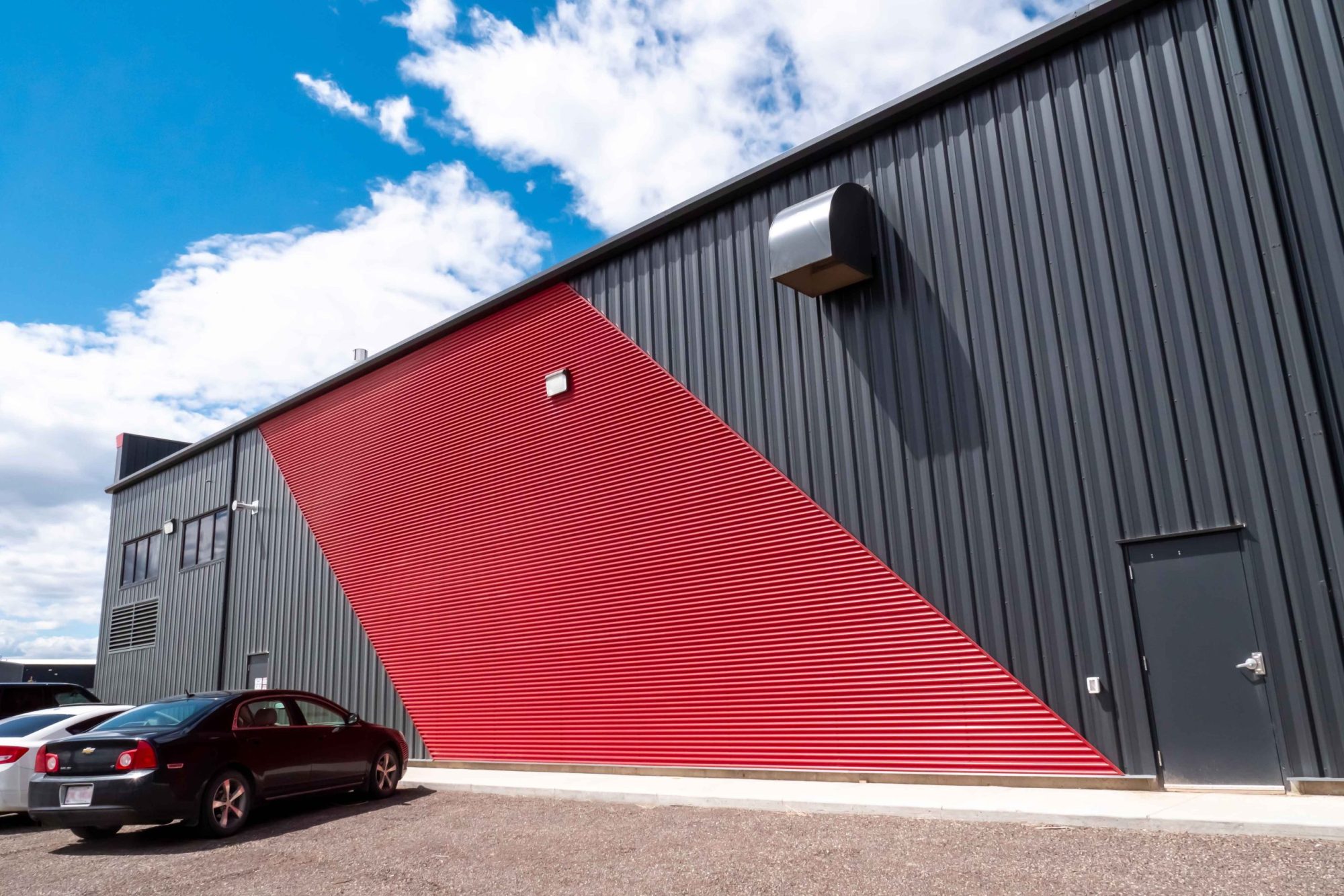

Project Gallery
37-7/8″ Corrugated Panel
37-7/8″ CORRUGATED
For 24 Gauge Steel Applications
Panel Specifications
Applications: Roof & Wall
Roof Coverage: 34-11/16″ with 2-rib overlap
Wall Coverage: 37.313″ with 1-rib overlap
Rib Height: 7/8″ at 2.67″ centers
Panel Length: 32″ to 50′
Available Gauge: 24
Available in 40+ Standard Colours & Specialty Finishes
Recommended Slope: 3/12 with overlap sealant (sealant required)
Note: Confirm with construction standards and underlayment manufacturing
Panels under 48″ in length are subject to a cut charge
More colours & gauges are available by special order
Line Drawing
32-7/8″ Corrugated Panel
32-7/8″ CORRUGATED
For Weathering Steel
& 26 Gauge Applications
Panel Specifications
Applications: Roof & Wall
Roof Coverage: 29-5/16″ with 2-rib overlap
Wall Coverage: 32″ with 1-rib overlap
Rib Height: 7/8″ at 2.67″ centers
Panel Length: 32″ to 50′
Available Gauge: 26
Available in 20+ Standard Colours
Recommended Slope: 3/12 with overlap sealant (sealant required)
Note: Confirm with construction standards and underlayment manufacturing
Panels under 48″ in length are subject to a cut charge
More colours & gauges are available by special order
Line Drawing
Available Resources
Click on one of the tabs to get started
7/8″ Corrugated Brochures
Get everything you need to know all in one page, including available trims & trim codes.
Download the brochures below:
Installation Guide
The use of a proper underlayment is vital to the performance of any roofing system. Forma Steel strongly recommends the use of a peel and stick membrane for any slopes lower than 3/12. Since every project is different, care and attention should be paid to the product that is being specified so that the building performs as designed.
Venting, breathability and water resistance are all components of a building envelope and should be confirmed with building designers for optimal performance.
Custom Trim
Our 7/8″ Corrugated panels come in our standard 7/8″ trim collection.
For a detailed view with trim codes, download the full trim list below.
Available Colours & Finishes
Espresso Woodgrain
Frontier Woodgrain
Gunstock Woodgrain
Saddle Woodgrain
Autumn Woodgrain
Light Pine Woodgrain
Barnboard Woodgrain
Dark Walnut Woodgrain
Obsidian Oak Woodgrain
Rustic
Concrete
Onyx Black Texture
Burnished Slate Texture
Fossil Grey Texture
Oxide Red Texture
Arctic White Texture
Silver Sage Texture
Ash Grey Texture
Bright White
White White
Iceberg
Bone White
Stone Grey
Regent Grey
Zinc Grey
Charcoal
Gunmetal
Carbon
Black
Dark Brown
Coffee Brown
Buckskin
Hickory
Tan
Wicker
Bright Red
Tile Red
Dark Red
Heron Blue
Royal Blue
Sapphire Blue
Oxford Blue
Slate Blue
Melchers Green
Galvalume
Galvanized
Bright White
White White
Iceberg
Bone White
Stone Grey
Regent Grey
Zinc Grey
Charcoal
Gunmetal
Carbon
Black
Dark Brown
Coffee Brown
Buckskin
Hickory
Tan
Wicker
Dark Red
Oxford Blue
Melchers Green
Galvalume
Galvanized
Espresso Woodgrain
Frontier Woodgrain
Gunstock Woodgrain
Saddle Woodgrain
Autumn Woodgrain
Light Pine Woodgrain
Barnboard Woodgrain
Dark Walnut Woodgrain
Obsidian Oak Woodgrain
Rustic
Concrete
Onyx Black Texture
Burnished Slate Texture
Fossil Grey Texture
Oxide Red Texture
Arctic White Texture
Silver Sage Texture
Ash Grey Texture
Onyx Black Texture
Burnished Slate Texture
Fossil Grey Texture
Oxide Red Texture
Arctic White Texture
Silver Sage Texture
Ash Grey Texture
Espresso Woodgrain
Frontier Woodgrain
Gunstock Woodgrain
Saddle Woodgrain
Autumn Woodgrain
Light Pine Woodgrain
Barnboard Woodgrain
Dark Walnut Woodgrain
Obsidian Oak Woodgrain
Steel Samples Available
We offer a variety of steel samples to our customers including steel panels, steel colour pieces, and samples rings of our Standard Colours & Specialty Finishes. For an exact representation of colour, we always recommend viewing steel colours in person prior to ordering.
To get samples, find a Forma Steel dealer near you by clicking the button below.
Looking For More?
View our wide range of Rollformed Panels great for various applications with multiple gauge options. Or check out our Inspiration Gallery to view more project photography with even more Colours & Specialty Finishes!
Weathering Steel
For a rustic architectural accent to your 7/8″ Corrugated panel, consider our Weathering Steel. This unique steel finish makes for a great accent in commmercial and architectural applications.
Where to Buy Forma Steel
We distribute through a network of Forma Steel dealers throughout Western Canada and beyond. We can work with you to acquire the right materials and designs for any creative vision from conception to final physical form.
Ask for Forma Steel at your local building supply store or lumber yard. Or check out our Where to Buy map below!
