37-7/8" Corrugated
Incredible Impact Resistance and Structural StabilityOur 37-7/8" Corrugated panels provide wider coverage and is available in 24 Gauge colours as well as our 22 Gauge Weathering Steel. 7/8" Corrugated is a high-strength panel, featuring a wave-like profile ideal for a variety of applications from roofing to decorative accents. The corrugations, measuring only 2.67” from crest to crest, produce a shadow effect that is both symmetrical and aesthetically pleasing. With incredible impact-resistance and exceptional structural stability, these panels are ideal in environments with high impact, wind and snow volume.
Very adaptable, corrugated panels are used in everything from modern residential designs, to large-scale commercial projects, to agricultural barns and outbuildings. Corrugated panels can be installed vertically and horizontally to achieve various designs. With a rib height of 7/8", these panels are configured to work with our 7/8" Standard Trims to complete any installation.
For our 32-7/8" Corrugated Panels in 26 Gauge Colours, click here.

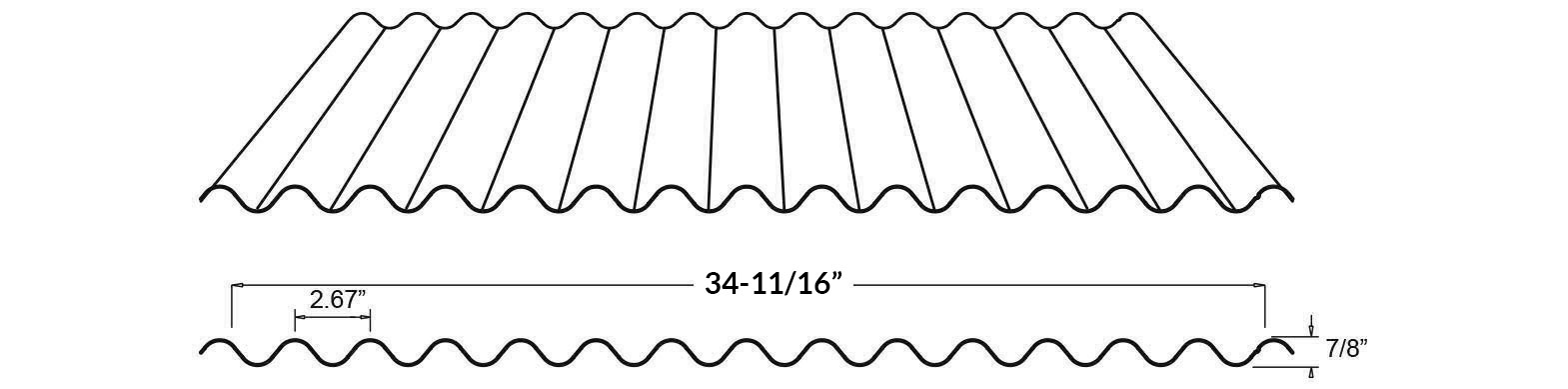

Panel Profile
Available 24 Gauge Colours
Galvalume
Bright White
White White
Iceberg
Bone White
Wicker
Stone Grey
Hickory
Tan
Buckskin
Coffee Brown
Dark Brown
Black
Carbon
Charcoal
Zinc Grey
Regent Grey
Bright Red
Tile Red
Dark Red
Slate Blue
Oxford Blue
Royal Blue
Heron Blue
Sapphire Blue
Melchers Green
Silver Sage Textured
Ash Grey Textured
Specialty Steel Available in 24 Gauge
Dark Walnut Woodgrain
Espresso Woodgrain
Gunstock Woodgrain
Frontier Woodgrain
Saddle Woodgrain
Autumn Woodgrain
Light Pine Woodgrain
Obsidian Oak Woodgrain
Barnboard Woodgrain
Onyx Black Textured
Burnished Slate Textured
Fossil Texture
Graphite Textured
Red Oxide Textured
Arctic White Textured
Concrete
Rustic
Black Perforated
White Perforated
Weathering Steel
Textured Steel Available in 24 Gauge
Onyx Black Textured
Burnished Slate Textured
Graphite Textured
Fossil Texture
Red Oxide Textured
Arctic White Textured
Silver Sage Textured
Ash Grey Textured
Specifications
Application: Roof & Wall
Roof Coverage: 34-11/16" with 2-rib overlap
Wall Coverage: 37.313" with 1 rib overlap
Rib Height: 7/8" at 2.67" Centers
Slope: 3/12 with overlap sealant (sealant required)
Note: Confirm with construction standards and underlayment manufacturing
Panel Length: 3' to 30'
Roof Application always requires overlap sealant
Available Gauge: 24
Available in 40+ Standard Colours and Specialty Finishes
Panels Under 48" in Length are subject to a Cut Charge
More colours and gauges are available by special order
Product Brochures
Installation:
The use of a proper underlayment is vital to the performance of any roofing system. Forma Steel strongly recommends the use of a peel and stick membrane for any slopes lower than 3/12. Since every project is different, care and attention should be paid to the product that is being specified so that the building performs as designed. Venting, breathability and water resistance are all components of a building envelope and should be confirmed with building designers for optimal performance.
Find Forma Steel Products Near You.
Forma Steel distributes through a network of Retail Partners throughout Western Canada. We can work with you to acquire the right materials and designs for any creative vision from conception to final physical form. Ask for Forma Steel at your local building supply store or lumber yard.
Weathering Steel
For a rustic architectural accent to your 7/8 Corrugated Panel, consider our Weathering Steel. Learn more about this unique steel finish.
